Baldor EJMM4114T - 50 HP, 3540RPM, 3 Phase, 60HZ, 326JM, 1252M, TEFC, F 60HZ Three Phase 50 HP 1252 M Cable

Save $3,079.75
BaldorSKU: EJMM4114T

Price:
Sale price$9,239.25 Regular price$12,319.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

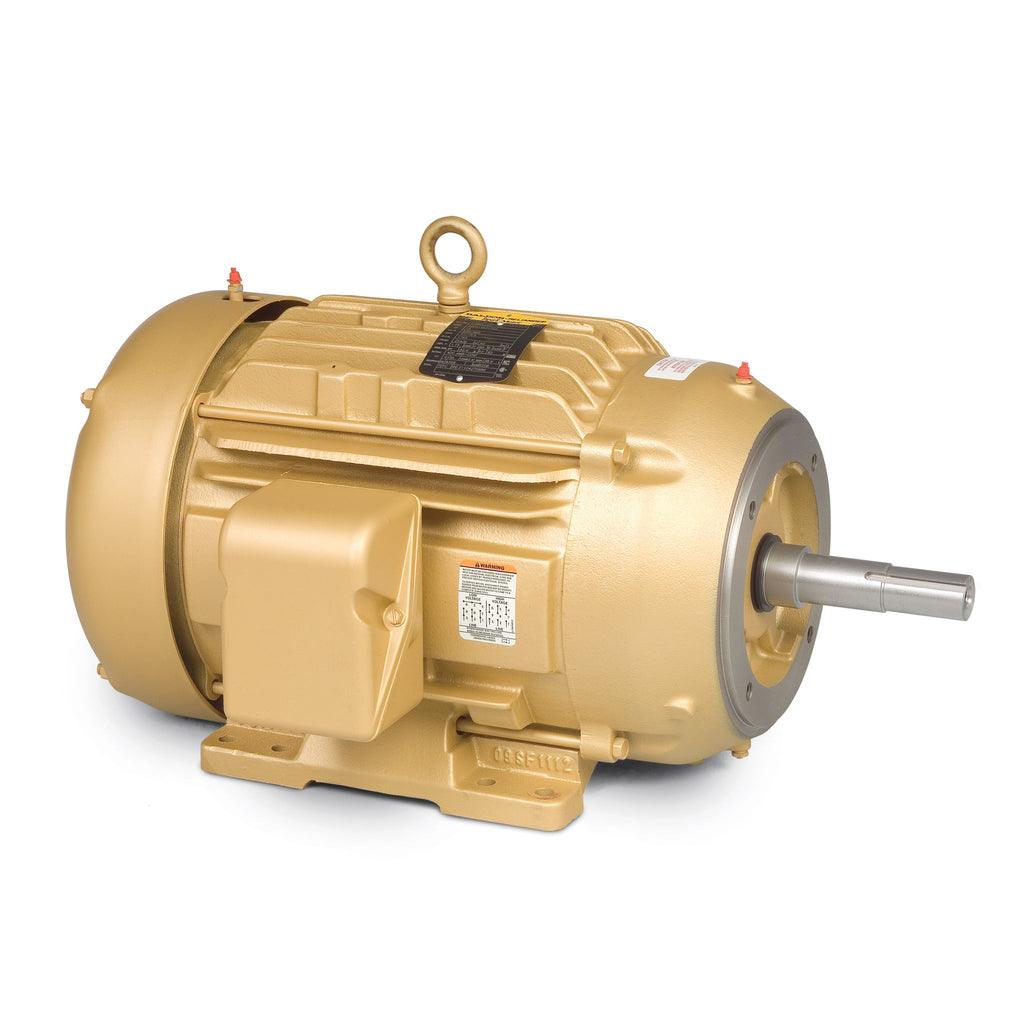

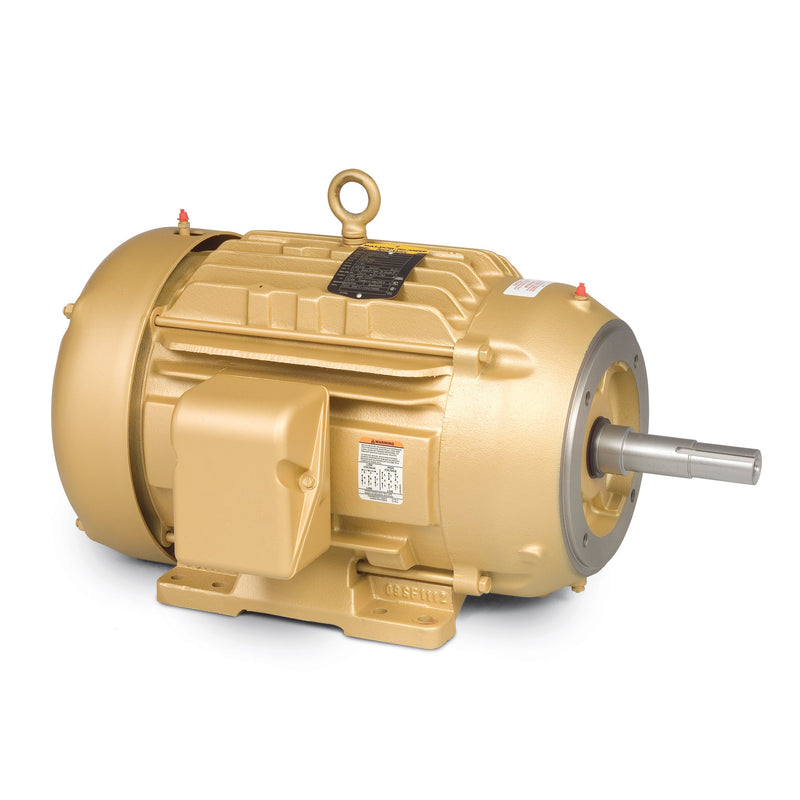

Baldor EJMM4114T - 50 HP Close Coupled Motor

Introducing the Baldor EJMM4114T, a high-performance 50 HP, 3540 RPM, 3-phase motor designed for reliability and efficiency in various industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor is built to withstand harsh environments while delivering optimal performance. With a frame size of 326JM and a service factor of 1.15, this motor is perfect for close-coupled pump applications.

Key Features:

  • Power: 50 HP
  • Speed: 3540 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 326JM
  • Service Factor: 1.15
  • Type: TEFC (Totally Enclosed Fan Cooled)

As a trusted supplier of replacement pumps and parts, Pump-Stop is your go-to source for high-quality Baldor motors and drives. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM4114T to ensure compatibility. If you’re having trouble locating the right item, our knowledgeable team is here to help!

UPC 781568394977
Supplier Part Number EJMM4114T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 590.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM4114T
Current @ Voltage 124.000 A @ 208.0 V, 56.000 A @ 460.0 V, 112.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 326JM
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 56.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1252M
Mounting Arrangement F1
Number of Poles 2
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 30.65 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3540 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
