Baldor EJMM3615T-G - 5 HP, 1755RPM, 3 Phase, 60HZ, 184JM, 3642M, TEFC, F1 60HZ Three Phase 5 HP 3642 M Cable

Save $516.75
BaldorSKU: EJMM3615T-G

Price:
Sale price$1,550.25 Regular price$2,067.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

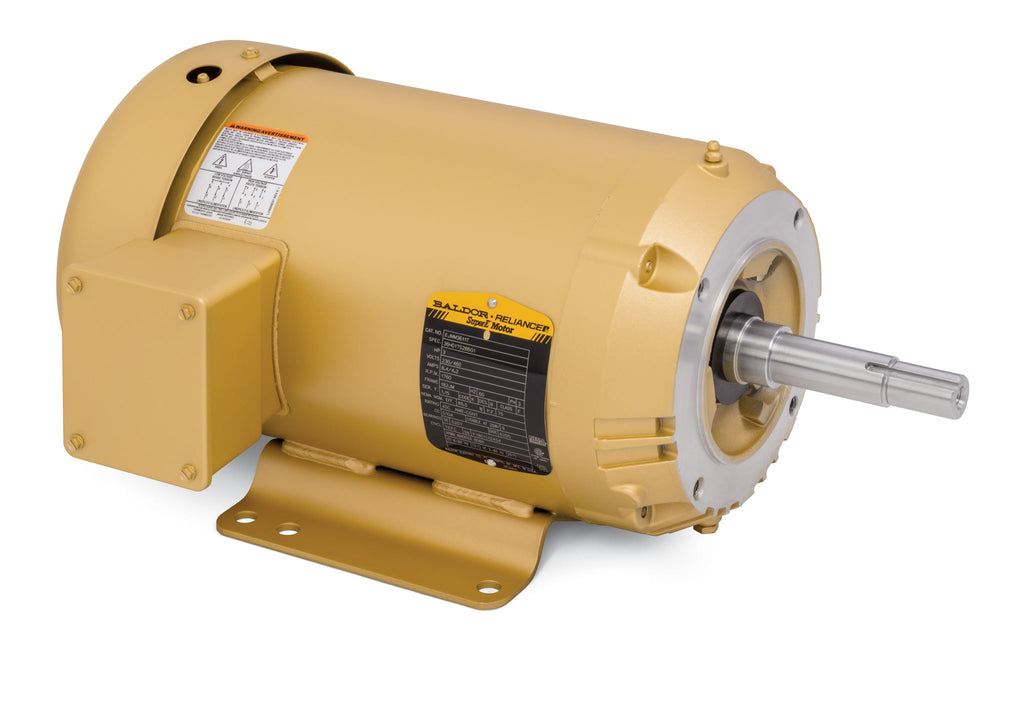

Baldor EJMM3615T-G - 5 HP Close Coupled Motor

Introducing the Baldor EJMM3615T-G, a high-performance 5 HP, 1755 RPM, 3-phase motor designed for reliable operation in various applications. This TEFC (Totally Enclosed Fan Cooled) motor is engineered for durability and efficiency, making it an ideal choice for pump systems and other industrial uses.

Specifications:

  • Power: 5 HP
  • Speed: 1755 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184JM
  • Enclosure Type: TEFC
  • Product Code: EJMM3615T-G

This Baldor-Reliance JM, JP, WCP Close Coupled Motor is built to meet the demands of various applications, ensuring optimal performance and longevity. At Pump-Stop, we are your preferred source for replacement pumps and parts, providing you with the best solutions for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM3615T-G to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568664988
Supplier Part Number EJMM3615T-G
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 93.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM3615T-G
Current @ Voltage 14.000 A @ 208.0 V, 6.700 A @ 460.0 V, 13.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.7 a
Insulation Class H
Inverter Code Inverter Ready
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 19.56 IN
Phase 3
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1755 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
