Baldor EJMM2538T - 40 HP, 3510RPM, 3 Phase, 60HZ, 286JM, 3956M, Opsb, F 60HZ Three Phase 40 HP 3956 M Cable

Save $2,157.50
BaldorSKU: EJMM2538T

Price:
Sale price$6,472.50 Regular price$8,630.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

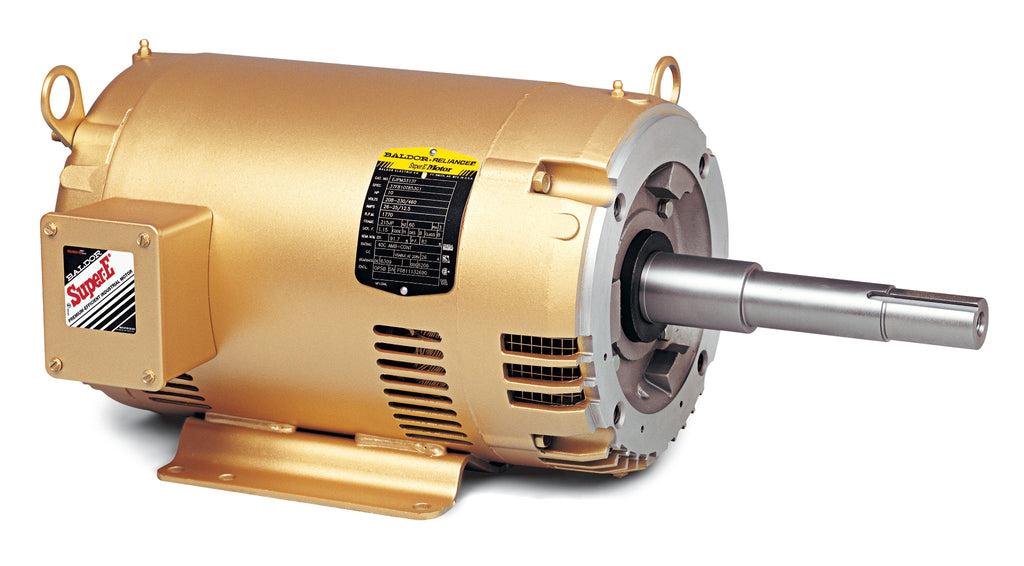

Baldor EJMM2538T - 40 HP Close Coupled Motor

Introducing the Baldor EJMM2538T, a high-performance 40 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3510 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 40 HP
  • Speed: 3510 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 286JM
  • Product Code: EJMM2538T

This Baldor-Reliance motor is ideal for applications requiring a dependable and powerful motor solution. As a trusted name in the industry, Baldor ensures that this motor meets high standards of quality and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM2538T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568138199
Supplier Part Number EJMM2538T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 321.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM2538T
Current @ Voltage 90.000 A @ 230.0 V, 99.000 A @ 208.0 V, 45.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 286JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 45.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3956M
Mounting Arrangement F1
Number of Poles 2
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 26.56 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3510 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
