Baldor EJMM2534T-5 - 30 HP, 3530RPM, 3 Phase, 60HZ, 284JM, 4040M, Opsb, F 60HZ Three Phase 30 HP 4040 M Cable

Save $1,521.50
BaldorSKU: EJMM2534T-5

Price:
Sale price$4,564.50 Regular price$6,086.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

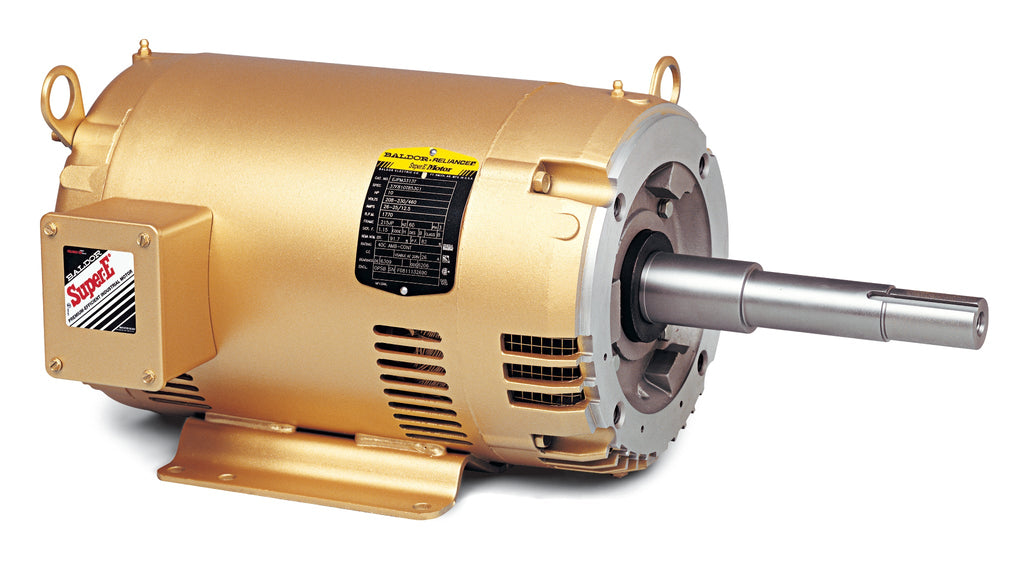

Baldor EJMM2534T-5 - 30 HP Close Coupled Motor

Introducing the Baldor EJMM2534T-5, a high-performance 30 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3530 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 30 HP
  • Speed: 3530 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 284JM
  • Enclosure: 4040M
  • Type: JM, JP, WCP Close Coupled Motors
  • Product Code: EJMM2534T-5

This Baldor-Reliance motor is ideal for applications requiring a compact and efficient solution. Its close coupled design ensures easy installation and integration into existing systems.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM2534T-5 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568138182
Supplier Part Number EJMM2534T-5
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 332.001
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM2534T-5
Current @ Voltage 27.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPSB
Feedback Device NO FEEDBACK
Frame 284JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4040M
Mounting Arrangement F1
Number of Poles 2
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 24.69 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3530 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
