Baldor EJMM2394T-G - 15 HP, 3520RPM, 3 Phase, 60HZ, 254JM, 0930M, TEFC, F 60HZ Three Phase 15 HP 0930 M Cable

Save $1,393.00
BaldorSKU: EJMM2394T-G

Price:
Sale price$4,179.00 Regular price$5,572.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

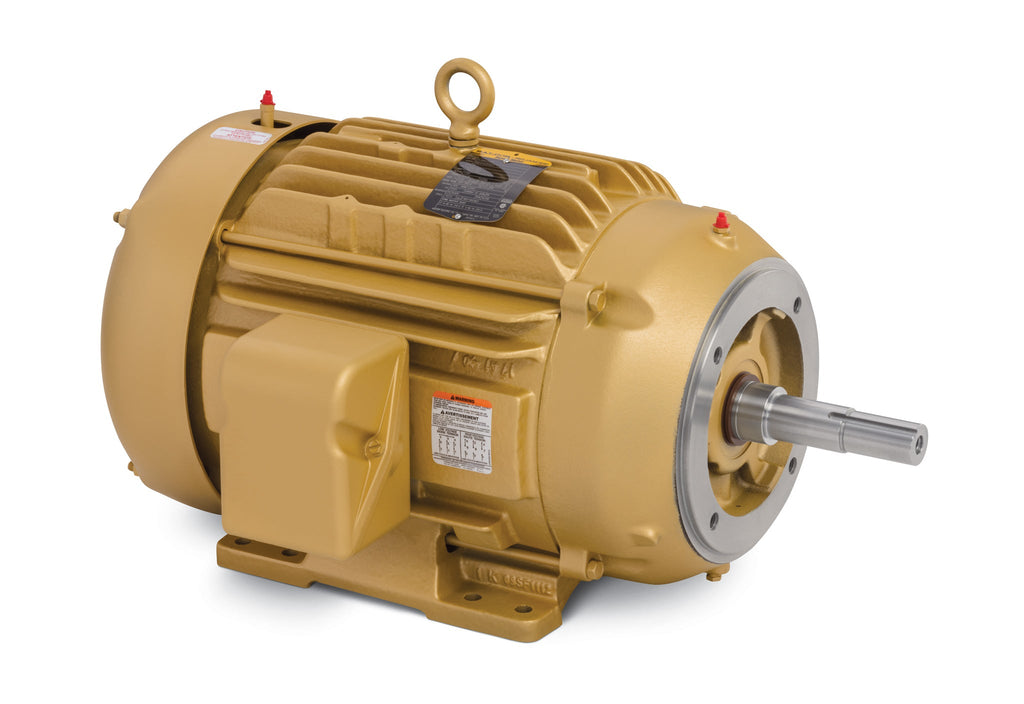

Baldor EJMM2394T-G - 15 HP Close Coupled Motor

Introducing the Baldor EJMM2394T-G, a high-performance 15 HP motor designed for efficiency and reliability in various industrial applications. Operating at 3520 RPM, this 3-phase motor is engineered to meet the demands of 60Hz environments, making it an ideal choice for close coupled pump systems.

Key Features:

  • Power: 15 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254JM
  • TEFC (Totally Enclosed Fan Cooled) design for enhanced durability
  • Product Code: EJMM2394T-G

This Baldor-Reliance motor is part of the JM, JP, and WCP Close Coupled Motors series, known for their robust construction and efficient performance. Whether you are replacing an existing motor or upgrading your system, the EJMM2394T-G is a reliable choice that ensures optimal operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568664537
Supplier Part Number EJMM2394T-G
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 260.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM2394T-G
Current @ Voltage 35.000 A @ 230.0 V, 38.000 A @ 208.0 V, 17.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254JM
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 17.5 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0930M
Mounting Arrangement F1
Number of Poles 2
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 25.36 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
