Baldor EHM4115T - 50 HP, 1775RPM, 3 Phase, 60HZ, 326T, 1272M, TEFC, F1 60HZ Three Phase 50 HP 1272 M Cable

Save $2,264.50
BaldorSKU: EHM4115T

Price:
Sale price$6,793.50 Regular price$9,058.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

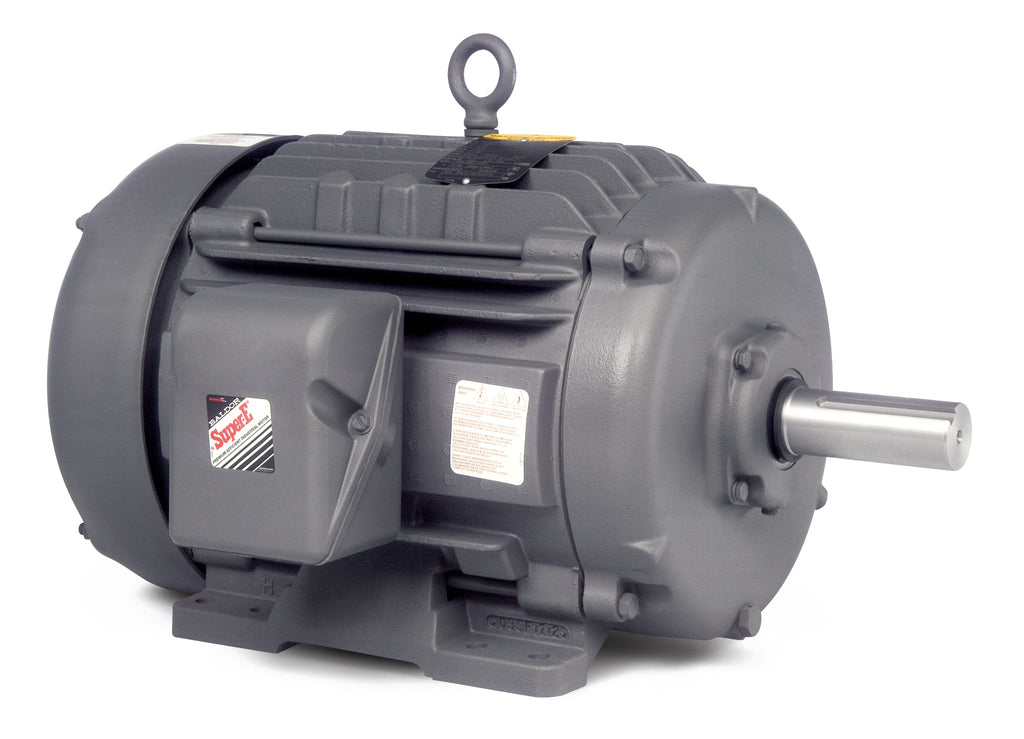

Baldor EHM4115T - 50 HP General Purpose HVAC Motor

The Baldor EHM4115T is a high-performance 50 HP, 1775 RPM, 3-phase HVAC motor designed for a variety of applications. With a robust TEFC (Totally Enclosed Fan Cooled) construction, this motor ensures durability and reliability in demanding environments. Operating at 60Hz and featuring a 326T frame size, the EHM4115T is engineered for efficiency and longevity.

Key Features:

  • Power: 50 HP
  • Speed: 1775 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 326T
  • Enclosure: TEFC
  • Product Code: EHM4115T

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568604267
Supplier Part Number EHM4115T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 622.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM4115T
Current @ Voltage 126.000 A @ 208.0 V, 58.000 A @ 460.0 V, 116.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 326T
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1272M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 30.28 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
