Baldor EHM4115T-5 - 50 HP, 1775RPM, 3 Phase, 60HZ, 326T, 1266M, TEFC, F1 60HZ Three Phase 50 HP 1266 M Cable

Save $2,264.50
BaldorSKU: EHM4115T-5

Price:
Sale price$6,793.50 Regular price$9,058.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

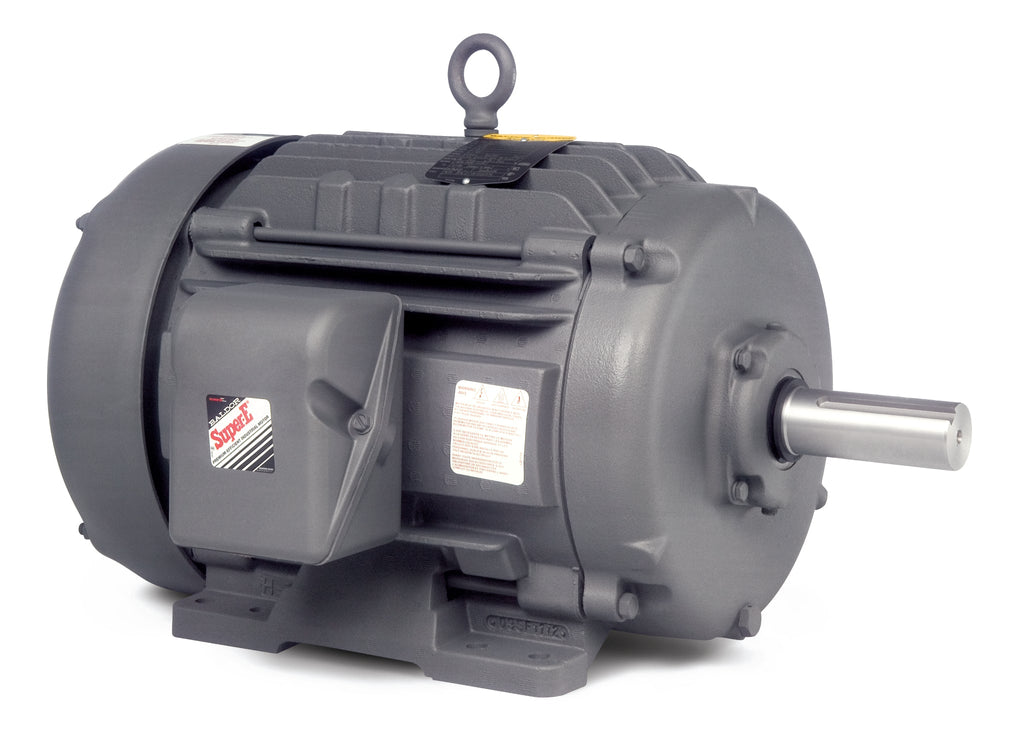

Baldor EHM4115T-5 General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM4115T-5, a high-performance general purpose motor designed for reliability and efficiency. This robust motor features:

  • Power: 50 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 326T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1
  • Product Code: EHM4115T-5

This Baldor-Reliance motor is ideal for various HVAC applications, ensuring optimal performance and durability. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right components for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568604274
Supplier Part Number EHM4115T-5
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 622.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM4115T-5
Current @ Voltage 50.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 326T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 50.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1266M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 30.28 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
