Baldor EHM4111T - 25 HP, 1180RPM, 3 Phase, 60HZ, 324T, 1072M, TEFC, F1 60HZ Three Phase 25 HP 1072 M Cable

Save $2,420.25
BaldorSKU: EHM4111T

Price:
Sale price$7,260.75 Regular price$9,681.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

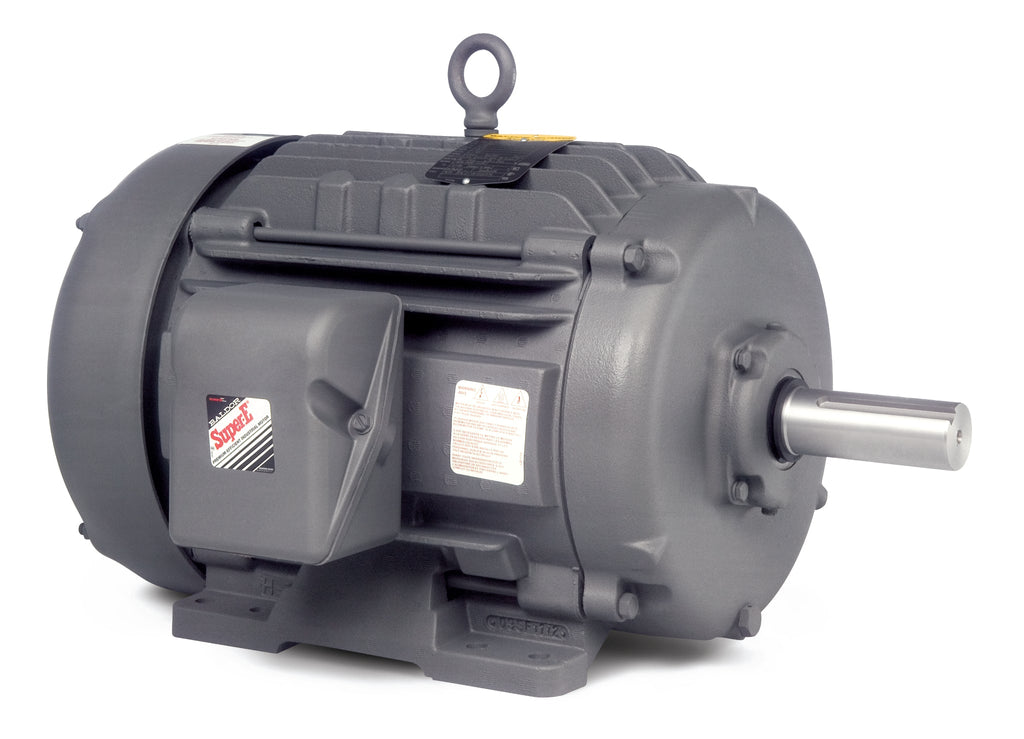

Baldor EHM4111T - 25 HP General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM4111T, a high-performance 25 HP motor designed for reliability and efficiency. Operating at 1180 RPM, this 3-phase motor is perfect for a variety of applications, ensuring optimal performance in demanding environments.

  • Power: 25 HP
  • Speed: 1180 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1

This Baldor-Reliance motor is engineered for general purpose HVAC applications, providing durability and long-lasting performance. With its robust construction and efficient design, it is an ideal choice for those seeking a reliable motor for their HVAC systems.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM4111T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568721919
Supplier Part Number EHM4111T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 491.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM4111T
Current @ Voltage 64.000 A @ 230.0 V, 70.000 A @ 208.0 V, 32.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 32.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1072M
Mounting Arrangement F1
Number of Poles 6
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 30.44 IN
Phase 3
Power Factor 79
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
