Baldor EHM4110T - 40 HP, 1775RPM, 3 Phase, 60HZ, 324T, 1264M, TEFC, F1 60HZ Three Phase 40 HP 1264 M Cable

Save $2,079.25
BaldorSKU: EHM4110T

Price:
Sale price$6,237.75 Regular price$8,317.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

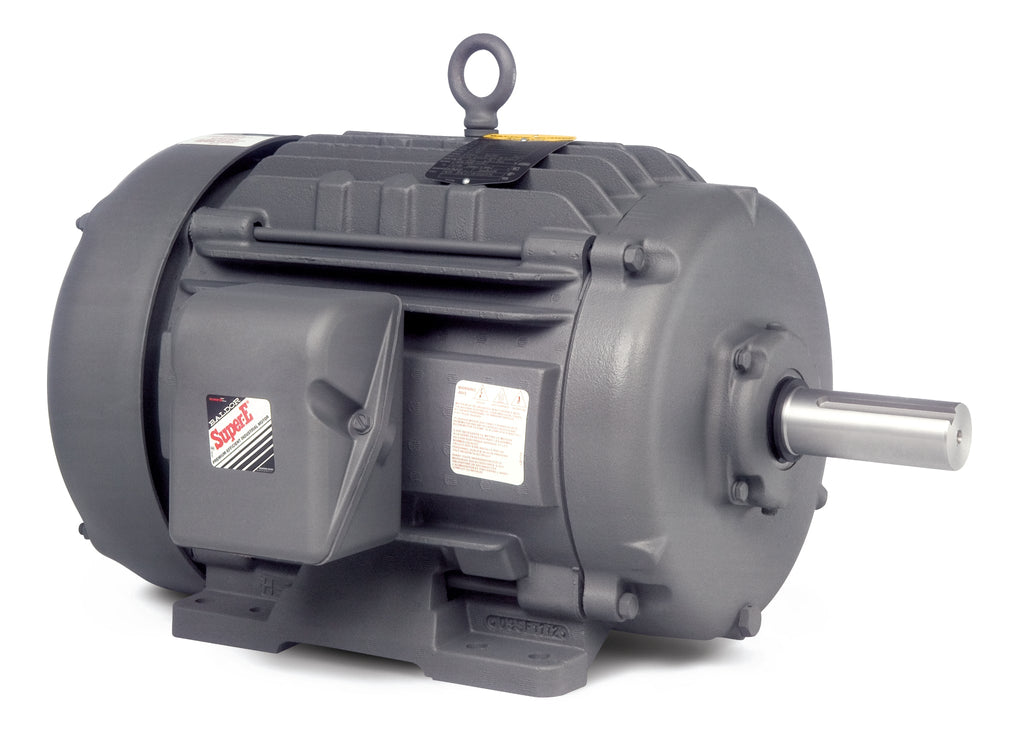

Baldor EHM4110T - 40 HP General Purpose HVAC Motor

The Baldor EHM4110T is a high-performance 40 HP, 1775 RPM, three-phase motor designed for general purpose HVAC applications. With a robust TEFC (Totally Enclosed Fan Cooled) design, this motor ensures durability and reliability in demanding environments. Operating at 60Hz and featuring a 324T frame size, the EHM4110T is engineered to deliver optimal efficiency and performance.

Key Specifications:

  • Power: 40 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324T
  • Model: 1264M
  • Type: TEFC
  • Product Code: EHM4110T

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM4110T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568512999
Supplier Part Number EHM4110T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 612.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM4110T
Current @ Voltage 48.000 A @ 460.0 V, 96.000 A @ 230.0 V, 102.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1264M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 30.28 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
