Baldor EHM3710T - 7.5 HP, 1770RPM, 3 Phase, 60HZ, 213T, 3738M, TEFC, F 60HZ Three Phase 7.5 HP 3738 M Cable

Save $494.50
BaldorSKU: EHM3710T

Price:
Sale price$1,483.50 Regular price$1,978.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

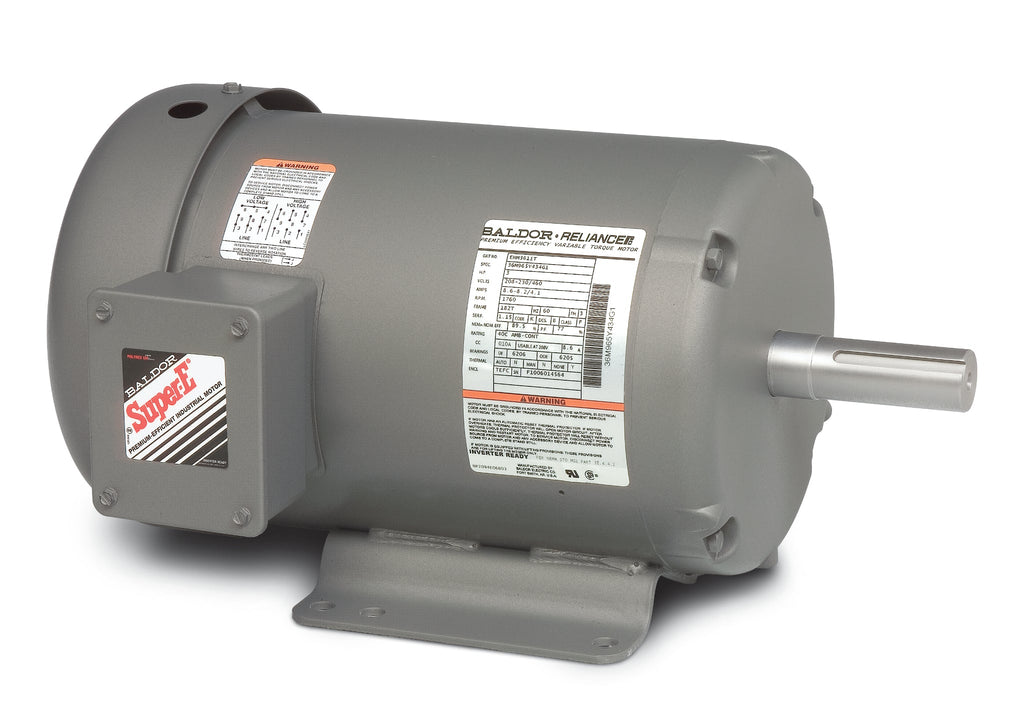

Baldor EHM3710T - 7.5 HP General Purpose HVAC Motor

The Baldor EHM3710T is a high-performance 7.5 HP, 1770 RPM, 3-phase HVAC motor designed for reliability and efficiency in various applications. With a robust TEFC (Totally Enclosed Fan Cooled) design, this motor is built to withstand harsh environments while providing optimal performance. Operating at 60Hz and featuring a 213T frame, the EHM3710T is ideal for general purpose HVAC systems, ensuring smooth operation and longevity.

Key Features:

  • Power: 7.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 213T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EHM3710T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM3710T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568513309
Supplier Part Number EHM3710T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 128.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM3710T
Current @ Voltage 20.000 A @ 208.0 V, 9.500 A @ 460.0 V, 19.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3738M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 19.01 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
