Baldor EHM3558T-5 - 2 HP, 1764RPM, 3 Phase, 60HZ, 145T, 3528M, TEFC, F1 60HZ Three Phase 2 HP 3528 M Cable

Save $288.50
BaldorSKU: EHM3558T-5

Price:
Sale price$865.50 Regular price$1,154.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

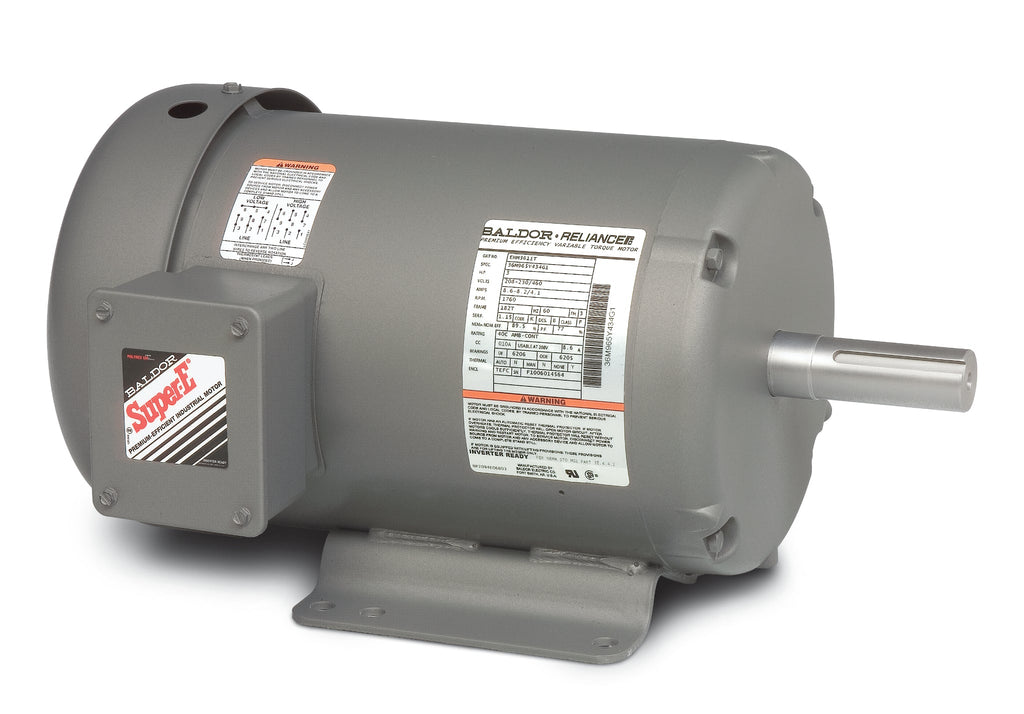

Baldor EHM3558T-5 General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM3558T-5, a high-performance 2 HP motor designed for reliability and efficiency. Operating at 1764 RPM, this 3-phase motor is perfect for a variety of applications, ensuring optimal performance in your heating, ventilation, and air conditioning systems.

  • Power: 2 HP
  • Speed: 1764 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1
  • Product Code: EHM3558T-5

This Baldor-Reliance motor is engineered for durability and efficiency, making it an ideal choice for both residential and commercial HVAC applications. With its robust construction and reliable performance, you can trust the EHM3558T-5 to keep your systems running smoothly.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568604182
Supplier Part Number EHM3558T-5
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM3558T-5
Current @ Voltage 2.150 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3528M
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
