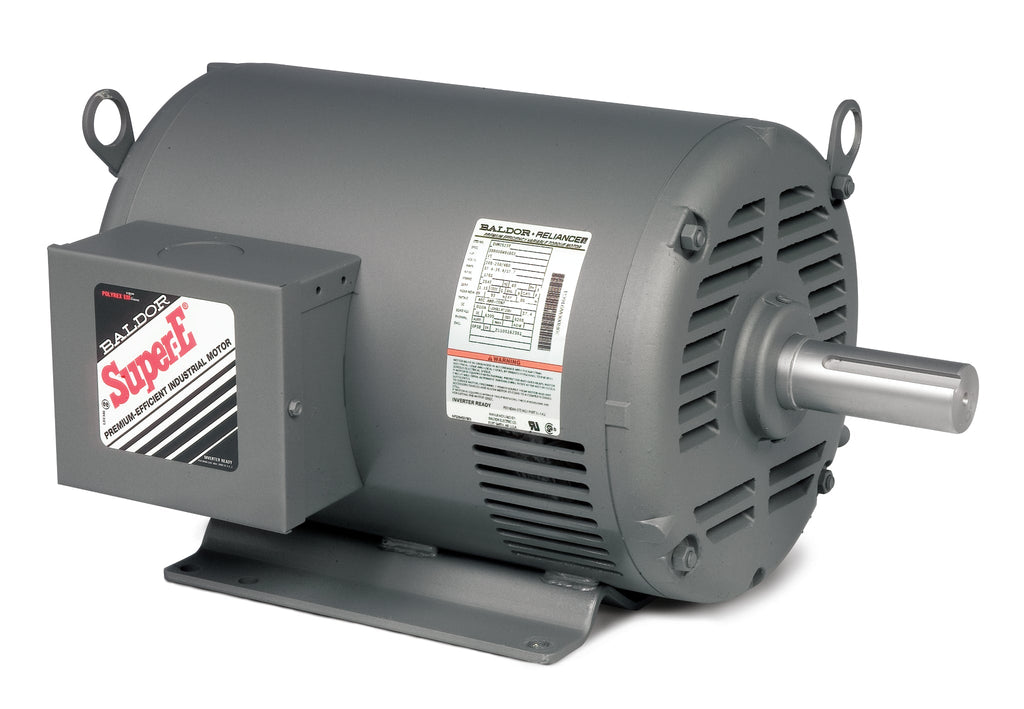

Baldor EHM3309T - 5 HP, 1160RPM, 3 Phase, 60HZ, 215T, 3744M, Opsb, F1 60HZ Three Phase 5 HP 3744 M Cable

Save $611.25
BaldorSKU: EHM3309T

Price:
Sale price$1,833.75 Regular price$2,445.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor EHM3309T - 5 HP General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM3309T, a reliable and efficient 5 HP motor designed for general purpose applications. Operating at 1160 RPM and compatible with 3-phase, 60Hz power supply, this motor is ideal for various HVAC setups. With a frame size of 215T and a robust design, it ensures optimal performance and longevity.

Key Features:

  • Power: 5 HP
  • Speed: 1160 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215T
  • Product Code: EHM3309T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568721230
Supplier Part Number EHM3309T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 141.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM3309T
Current @ Voltage 15.200 A @ 208.0 V, 7.400 A @ 460.0 V, 14.800 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.4 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3744M
Mounting Arrangement F1
Number of Poles 6
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 17.45 IN
Phase 3
Power Factor 71
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
