Baldor EHM2523T-8 - 15 HP, 1765RPM, 3 Phase, 60HZ, 254T, 3948M, Opsb, F1 60HZ Three Phase 15 HP 3948 M Cable

Save $762.75
BaldorSKU: EHM2523T-8

Price:
Sale price$2,288.25 Regular price$3,051.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

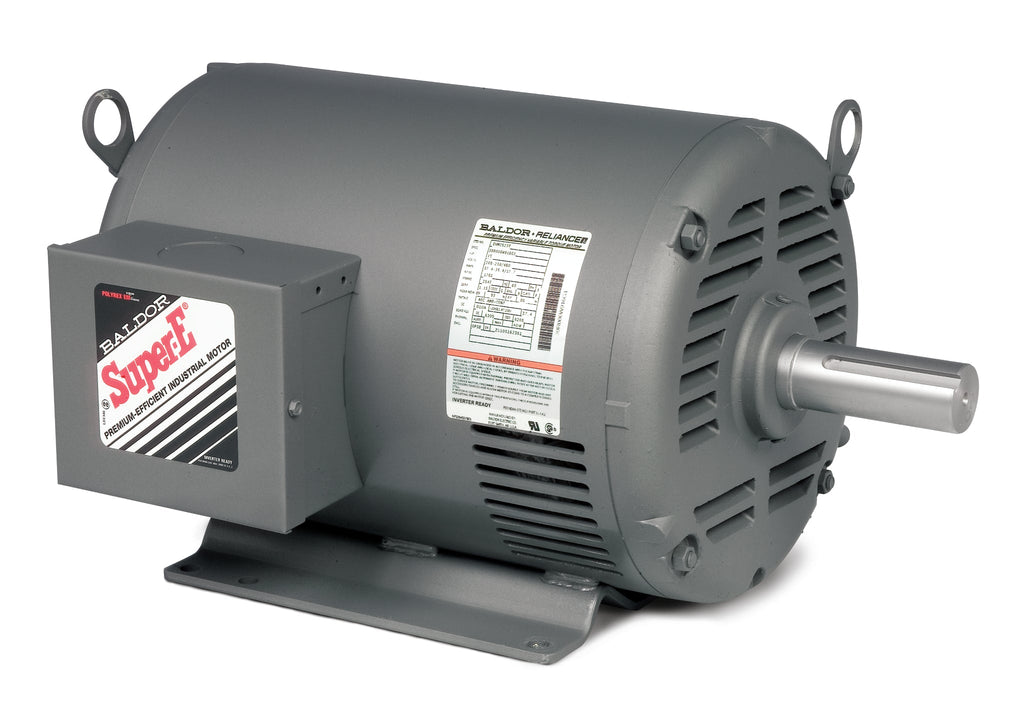

Baldor EHM2523T-8 General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM2523T-8, a high-performance general purpose motor designed for reliability and efficiency. This 15 HP motor operates at 1765 RPM and is built for 3-phase, 60Hz applications, making it an ideal choice for various HVAC and pump systems.

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254T
  • Product Code: EHM2523T-8
  • Type: General Purpose HVAC Motor

This Baldor motor is engineered for durability and optimal performance, making it a trusted choice for HVAC professionals and contractors. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM2523T-8 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568519233
Supplier Part Number EHM2523T-8
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 209.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM2523T-8
Current @ Voltage 40.000 A @ 208.0 V, 41.000 A @ 200.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 41.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3948M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.19 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Part Winding
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 200 V
Voltage @ Frequency 200.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
