Baldor EHM2506T - 7.5 HP, 1180RPM, 3 Phase, 60HZ, 254T, 3950M, Opsb, F 60HZ Three Phase 7.5 HP 3950 M Cable

Save $730.00
BaldorSKU: EHM2506T

Price:
Sale price$2,190.00 Regular price$2,920.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

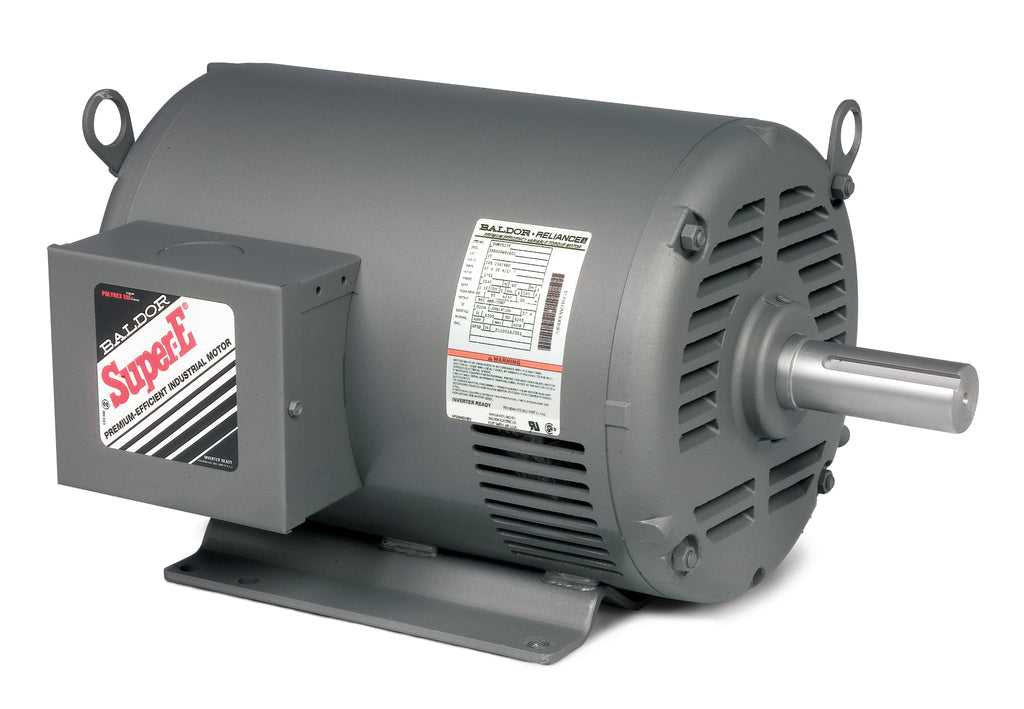

Baldor EHM2506T - 7.5 HP General Purpose HVAC Motor

The Baldor EHM2506T is a high-performance 7.5 HP, 1180 RPM, 3-phase HVAC motor designed for reliability and efficiency in various applications. Operating at 60Hz, this motor features a 254T frame and is built to meet the demands of general purpose HVAC systems.

Key Features:

  • Power: 7.5 HP
  • Speed: 1180 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254T
  • Model: 3950M
  • Type: OPSB

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568721186
Supplier Part Number EHM2506T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 248.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM2506T
Current @ Voltage 11.400 A @ 460.0 V, 22.800 A @ 230.0 V, 24.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.4 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3950M
Mounting Arrangement F1
Number of Poles 6
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 23.19 IN
Phase 3
Power Factor 68
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
