Baldor EHFM2543T - 50 HP, 1775RPM, 3 Phase, 60HZ, 326T, 4256M, Opsb, F2 60HZ Three Phase 50 HP 4256 M Cable

Save $2,025.50
BaldorSKU: EHFM2543T

Price:
Sale price$6,076.50 Regular price$8,102.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

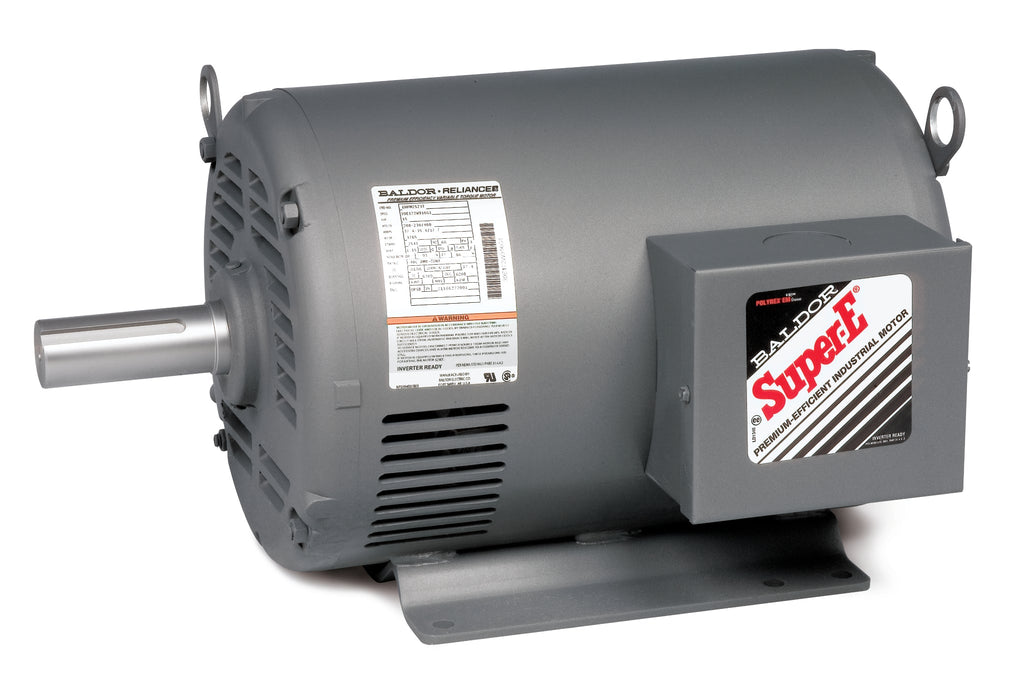

Baldor EHFM2543T - 50 HP General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHFM2543T, a high-performance 50 HP motor designed for reliability and efficiency. Operating at 1775 RPM, this 3-phase motor is perfect for a variety of applications, ensuring optimal performance in demanding environments.

Specifications:

  • Power: 50 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 326T
  • Enclosure: 4256M
  • Type: OPSB
  • Service Factor: F2

This Baldor-Reliance motor is ideal for general purpose HVAC applications, providing durability and long-lasting performance. As a trusted vendor, Baldor ensures that you receive a product that meets the highest standards of quality.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHFM2543T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568423875
Supplier Part Number EHFM2543T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 466.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHFM2543T
Current @ Voltage 114.000 A @ 230.0 V, 121.000 A @ 208.0 V, 57.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPSB
Feedback Device NO FEEDBACK
Frame 326T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 57.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4256M
Mounting Arrangement F2
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 27.69 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
