Baldor EGDM2515T - 20 HP, 1765RPM, 3 Phase, 60HZ, 254TZ, 3948M, Opsb, F 60HZ Three Phase 20 HP 3948 M Cable

Save $1,229.25
BaldorSKU: EGDM2515T

Price:
Sale price$3,687.75 Regular price$4,917.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

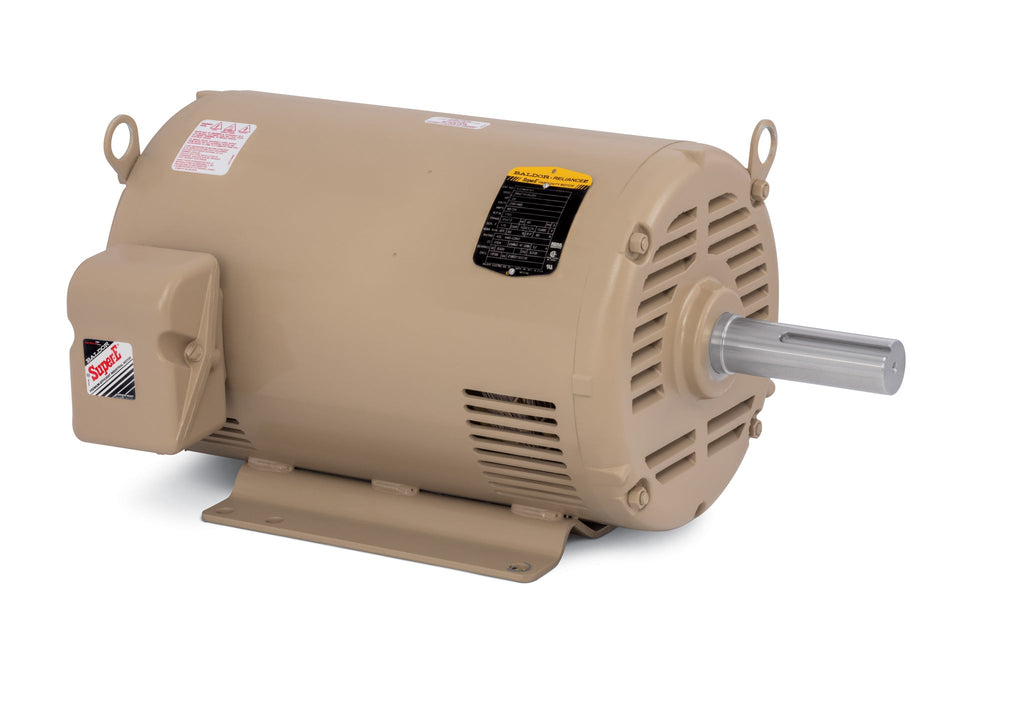

Baldor-Reliance Grain Dryer Motor - Model EGDM2515T

Upgrade your grain drying operations with the Baldor EGDM2515T Grain Dryer Motor. This powerful motor delivers 20 HP and operates at 1765 RPM, making it an ideal choice for efficient grain drying. Designed for 3-phase applications and compatible with 60Hz power supply, this motor is built to handle the demands of agricultural environments.

Specifications:

  • Power: 20 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254TZ
  • Enclosure: 3948M
  • Type: OPSB

As a trusted vendor, Baldor ensures high-quality performance and durability, making this motor a reliable choice for your grain drying needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor EGDM2515T. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568522936
Supplier Part Number EGDM2515T
Category AC Motors
Subcategory Grain Dryer Motors
Product Family General Purpose
Agency Approvals CSA EEV, NEMA_PREMIUM, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 250.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EGDM2515T
Current @ Voltage 52.000 A @ 208.0 V, 48.000 A @ 230.0 V, 24.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 254TZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3948M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 24.19 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen Included
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
