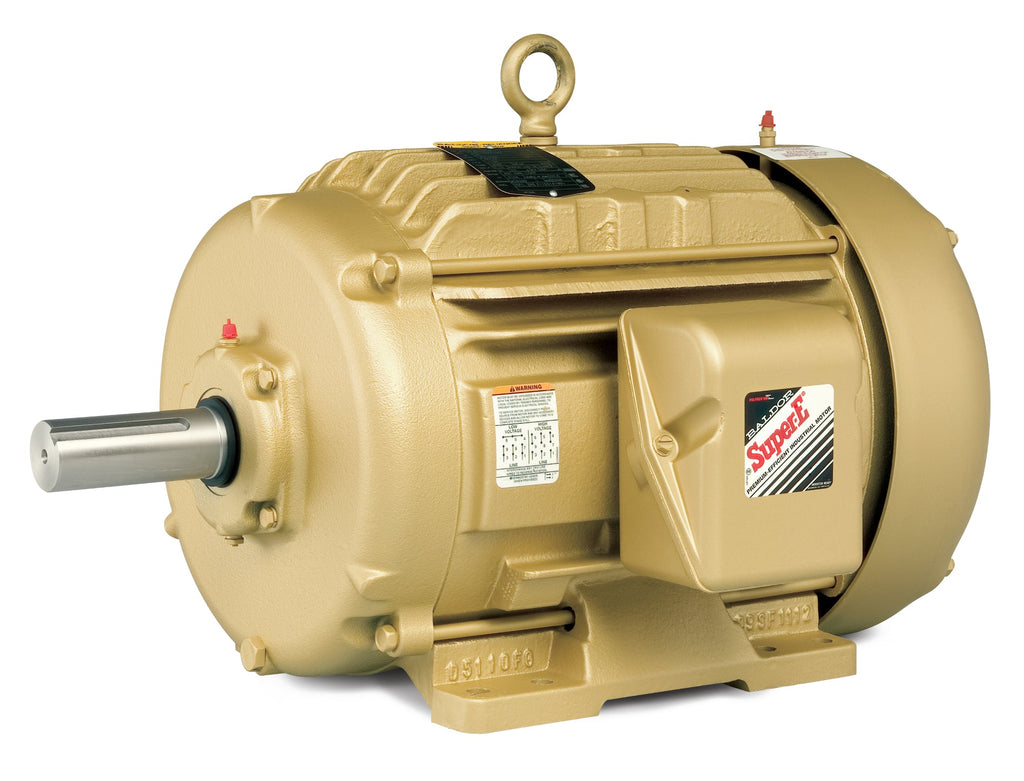

Baldor EFM4312T - 50HP, 1185RPM, 3PH, 60HZ, 365T, A3668M, TEFC, F - Three Phase Enclosed
Roll over image to zoom in Click on image to zoom
Baldor EFM4312T - 50HP, 1185RPM, 3PH, 60HZ, 365T, A3668M, TEFC, F - Three Phase Enclosed
Baldor Electric Motors

Baldor EFM4312T - 50 HP, 1185RPM, 3 Phase, 60HZ, 365T, A3668M, TEFC, F 60HZ Three Phase Three Phase 50 HP

BaldorSKU: EFM4312T
Price:
$12,556.50

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor EFM4312T for Baldor pump systems.

Part Specifications
Part Number EFM4312T
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568749012
Supplier Part Number
EFM4312T
Category
AC Motors
Subcategory
Three Phase Enclosed
Product Family
General Industrial
Agency Approvals
NEMA PREMIUM, CURUSEEV
Ambient Temperature
40 °C
Approximate Weight (lbs)
878.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
EFM4312T
Current @ Voltage
124.000 A @ 230.0 V, 132.000 A @ 208.0 V, 62.000 A @ 460.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
94.1 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
365T
Frame Material
Iron
Frequency
60.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
62.0 a
Insulation Class
F
Inverter Code
Inverter Ready
IP Rating
NONE
KVA Code
G
Lifting Lugs
Standard Lifting Lugs
Max Speed
1800 rpm
Motor Lead Quantity/Wire Size
3 @ 4 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A3668M
Mounting Arrangement
F2
Number of Poles
6
Output
50.000 hp
Output @ Frequency
50.000 HP @ 60 HZ
Overall Length
33.49 IN
Phase
3
Power Factor
81
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1.15
Shaft Diameter
2.375 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1185 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,200 rpm
Synchronous Speed @ Frequency
1200 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
None
Voltage
230 V, 460 V
Voltage @ Frequency
230.0 V @ 60 HZ, 460.0 V @ 60 HZ
