Baldor EFM4104T - 30 HP, 1770RPM, 3 Phase, 60HZ, 286T, 1056M, TEFC, F2 60HZ Three Phase Three Phase 30 HP 1056 M Cable

Save $1,785.75
BaldorSKU: EFM4104T

Price:
Sale price$5,357.25 Regular price$7,143.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

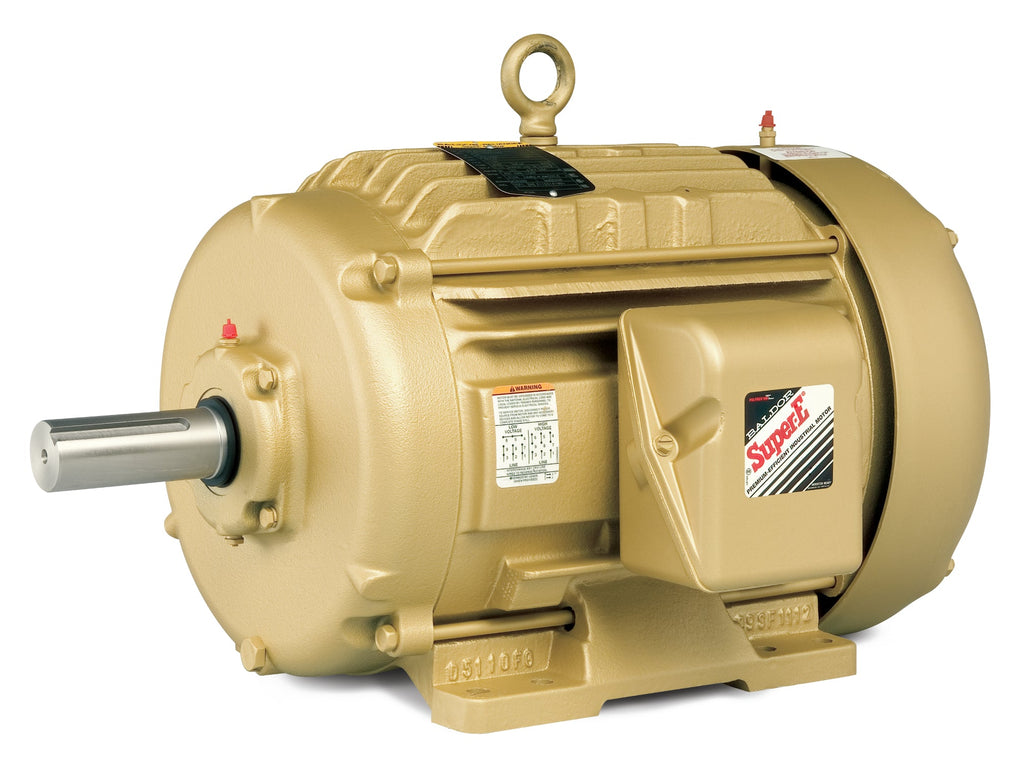

Baldor EFM4104T - 30 HP Three Phase Enclosed Motor

Discover the power and reliability of the Baldor EFM4104T, a robust 30 HP, 1770 RPM three-phase motor designed for high-performance applications. This motor operates at 60HZ and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in demanding environments.

Specifications:

  • Power: 30 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 286T
  • Enclosure: TEFC
  • Product Code: EFM4104T

This Baldor-Reliance motor is ideal for various industrial applications, providing reliable performance and longevity. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EFM4104T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568185575
Supplier Part Number EFM4104T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 408.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EFM4104T
Current @ Voltage 72.000 A @ 230.0 V, 76.000 A @ 208.0 V, 36.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 36.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1056M
Mounting Arrangement F2
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 27.81 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
