Baldor EFM3218T-8 - 5 HP, 1750RPM, 3 Phase, 60HZ, 184T, 3640M, Opsb, F2 60HZ Three Phase Three Phase 5 HP 3640 M Cable

Save $393.50
BaldorSKU: EFM3218T-8

Price:
Sale price$1,180.50 Regular price$1,574.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

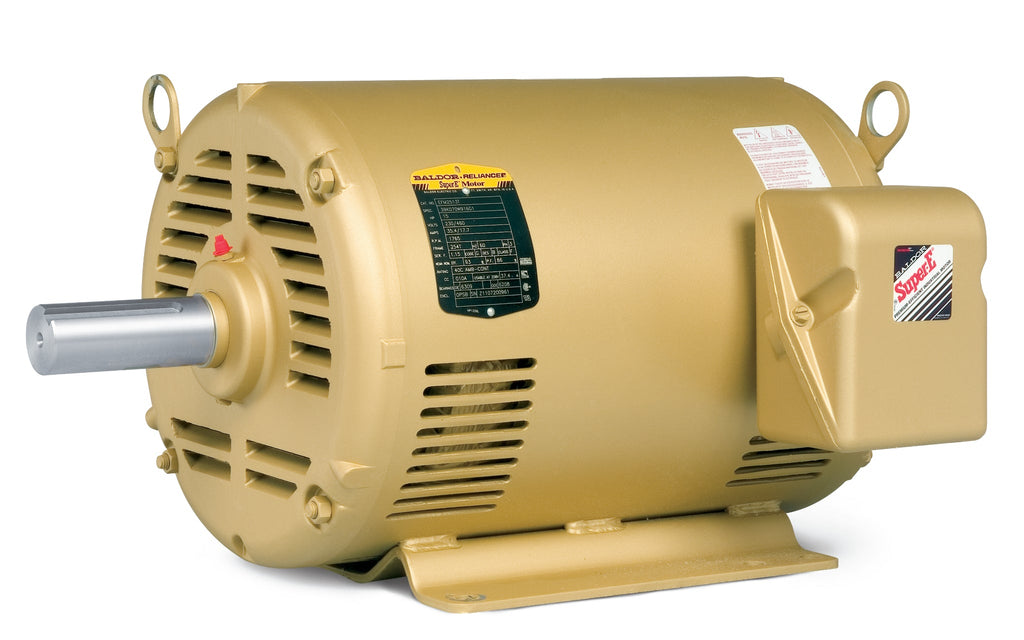

Baldor EFM3218T-8 - 5 HP Three Phase Open Motor

Discover the power and reliability of the Baldor EFM3218T-8, a high-performance 5 HP, 1750 RPM three-phase open motor designed for various industrial applications. Operating at 60Hz, this motor features a 184T frame and is built to deliver exceptional efficiency and durability.

Key Specifications:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184T
  • Product Code: EFM3218T-8

This Baldor-Reliance motor is ideal for applications requiring robust performance and reliability. Whether you are replacing an existing motor or upgrading your equipment, the EFM3218T-8 is a top choice for efficiency and longevity.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help!

UPC 781568174517
Supplier Part Number EFM3218T-8
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 82.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EFM3218T-8
Current @ Voltage 15.300 A @ 200.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 15.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3640M
Mounting Arrangement F2
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.50 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 200 V
Voltage @ Frequency 200.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
