Baldor ECTM4314T - 60 HP, 1780RPM, 3 Phase, 60HZ, 364T, 1462M, Teao, F1 60HZ Three Phase 60 HP 1462 M Cable

Save $4,060.25
BaldorSKU: ECTM4314T

Price:
Sale price$12,180.75 Regular price$16,241.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

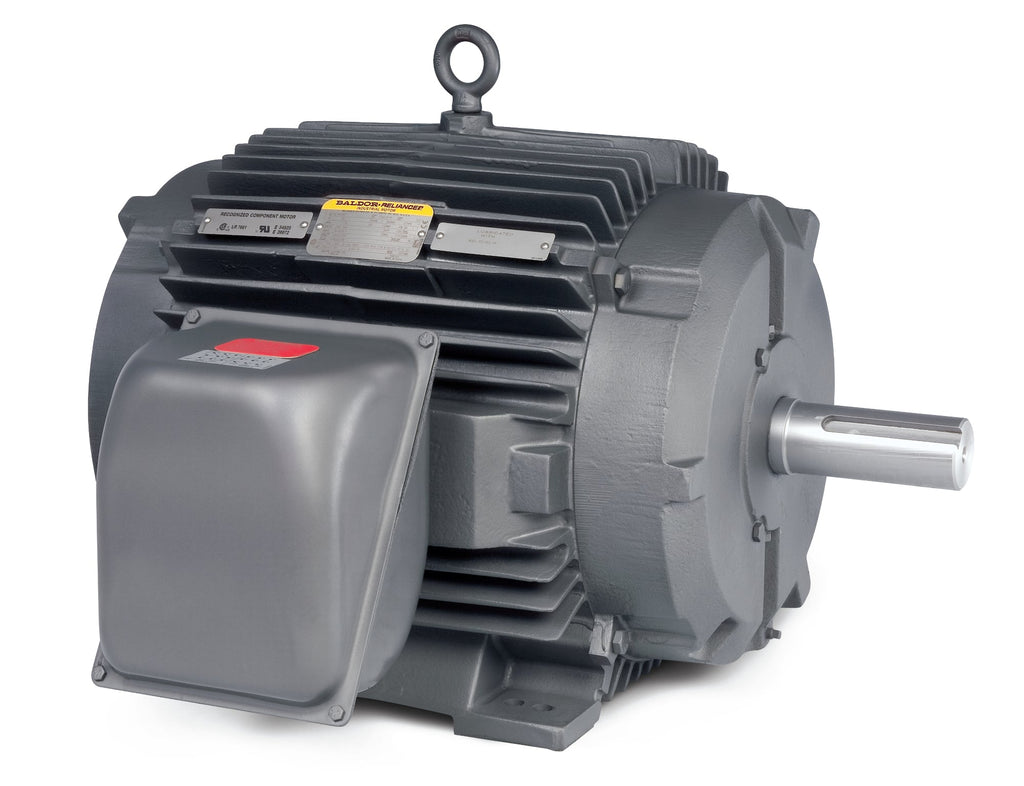

Baldor ECTM4314T Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor ECTM4314T, a high-performance chiller and cooling tower motor designed for efficiency and reliability. This robust motor features:

  • Power: 60 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 364T
  • Insulation Class: 1462M
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Mounting Type: F1

This motor is ideal for various applications, ensuring optimal performance in demanding environments. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, providing quality products to meet your needs.

If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568408469
Supplier Part Number ECTM4314T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Agency Approvals CURUSEEV, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 835.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECTM4314T
Current @ Voltage 140.000 A @ 230.0 V, 152.000 A @ 208.0 V, 70.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 70.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A3658M
Mounting Arrangement F1
Number of Poles 4
Output 60.000 hp
Output @ Frequency 60.000 HP @ 60 HZ
Overall Length 29.70 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.374 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ

Motor Curves
