Baldor ECTM4115T - 50 Air Overhp, 1775RPM, 3 Phase, 60HZ, 326T, 1272 60HZ Three Phase

Save $3,087.50
BaldorSKU: ECTM4115T

Price:
Sale price$9,262.50 Regular price$12,350.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

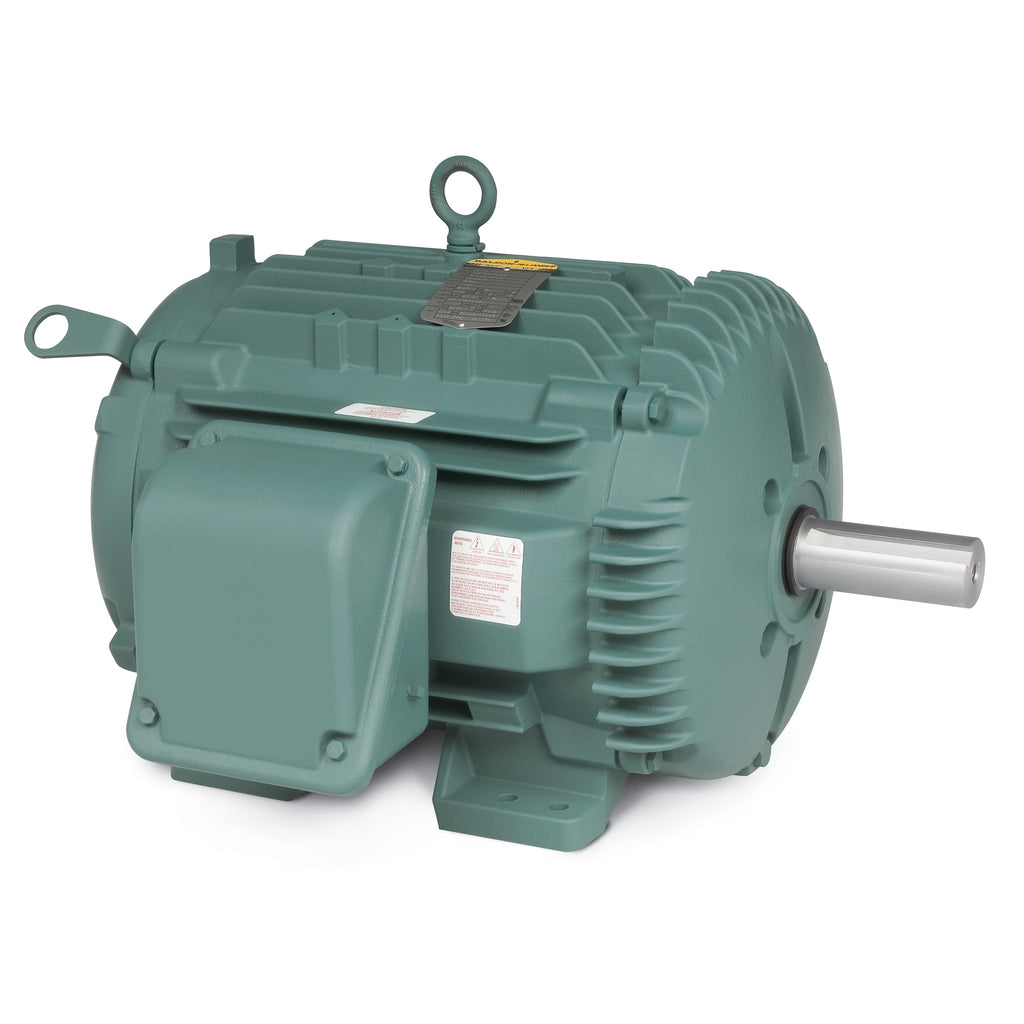

Baldor ECTM4115T Chiller/Cooling Tower Motor

The Baldor ECTM4115T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a power rating of 50 Air Over Horsepower (HP) and a speed of 1775 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 50 Air Over HP
  • Speed: 1775 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 326T
  • Product Code: ECTM4115T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your cooling needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor ECTM4115T. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568408421
Supplier Part Number ECTM4115T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Super-E Chemical Processing
Agency Approvals CURUS, NEMA_PREMIUM, CSA EEV, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 598.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM4115T
Current @ Voltage 126.000 A @ 208.0 V, 58.000 A @ 460.0 V, 116.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 326T
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1272M
Mounting Arrangement F1
Number of Poles 4
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 28.38 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
