Baldor ECTM4100T - 15 Air Overhp, 1175RPM, 3 Phase, 60HZ, 284T, 1046 60HZ Three Phase

Save $1,757.00
BaldorSKU: ECTM4100T

Price:
Sale price$5,271.00 Regular price$7,028.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

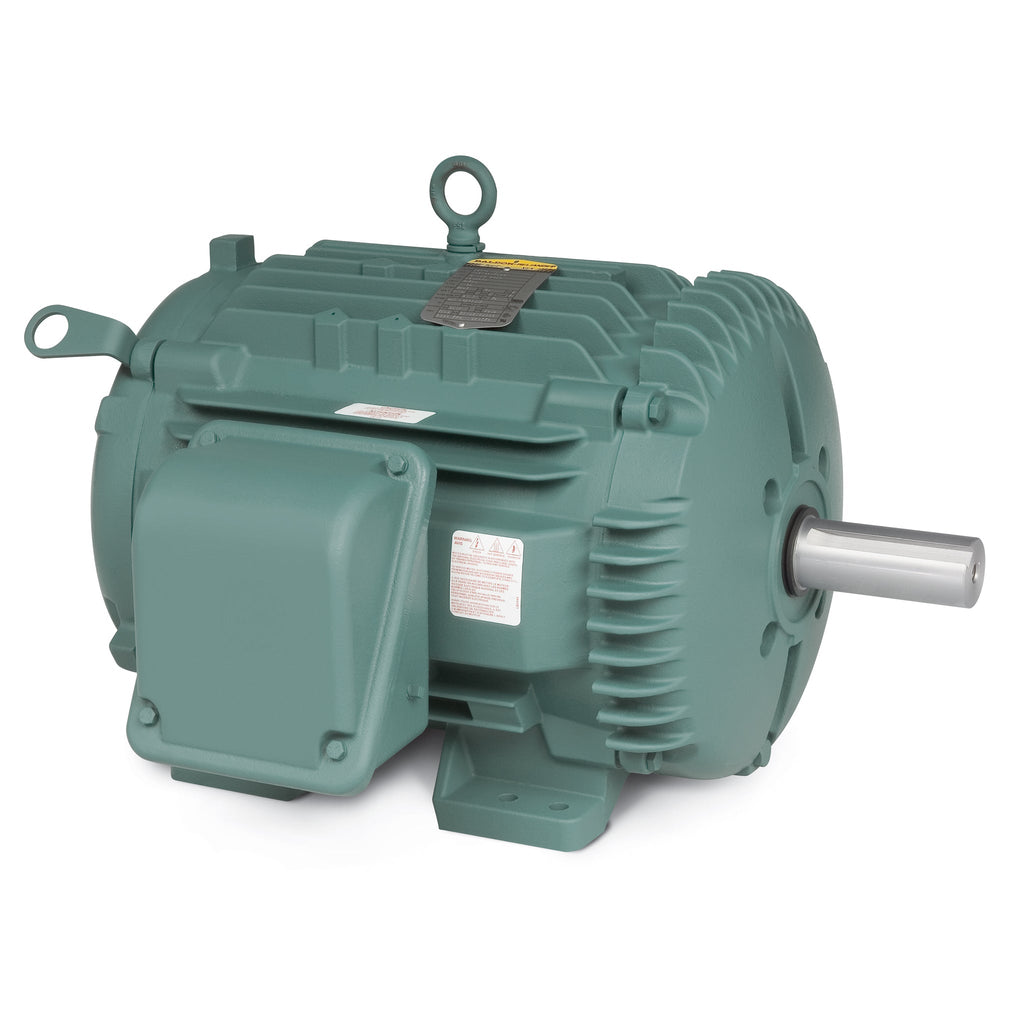

Baldor ECTM4100T Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor ECTM4100T, a high-performance chiller and cooling tower motor designed for efficiency and reliability. This robust motor features a power rating of 15 Air Overhp and operates at 1175 RPM, making it ideal for various industrial applications.

Key specifications include:

  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 284T
  • Product Code: ECTM4100T

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and performance, making it a perfect choice for your cooling needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECTM4100T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568408360
Supplier Part Number ECTM4100T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CURUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 345.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM4100T
Current @ Voltage 42.000 A @ 208.0 V, 42.000 A @ 230.0 V, 21.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 21.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1046M
Mounting Arrangement F1
Number of Poles 6
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 25.71 IN
Phase 3
Power Factor 73
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1175 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
