Baldor ECTM2333T - 15 Air Overhp, 1765RPM, 3 Phase, 60HZ, 254T, 0944 60HZ Three Phase

Save $1,212.00
BaldorSKU: ECTM2333T

Price:
Sale price$3,636.00 Regular price$4,848.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

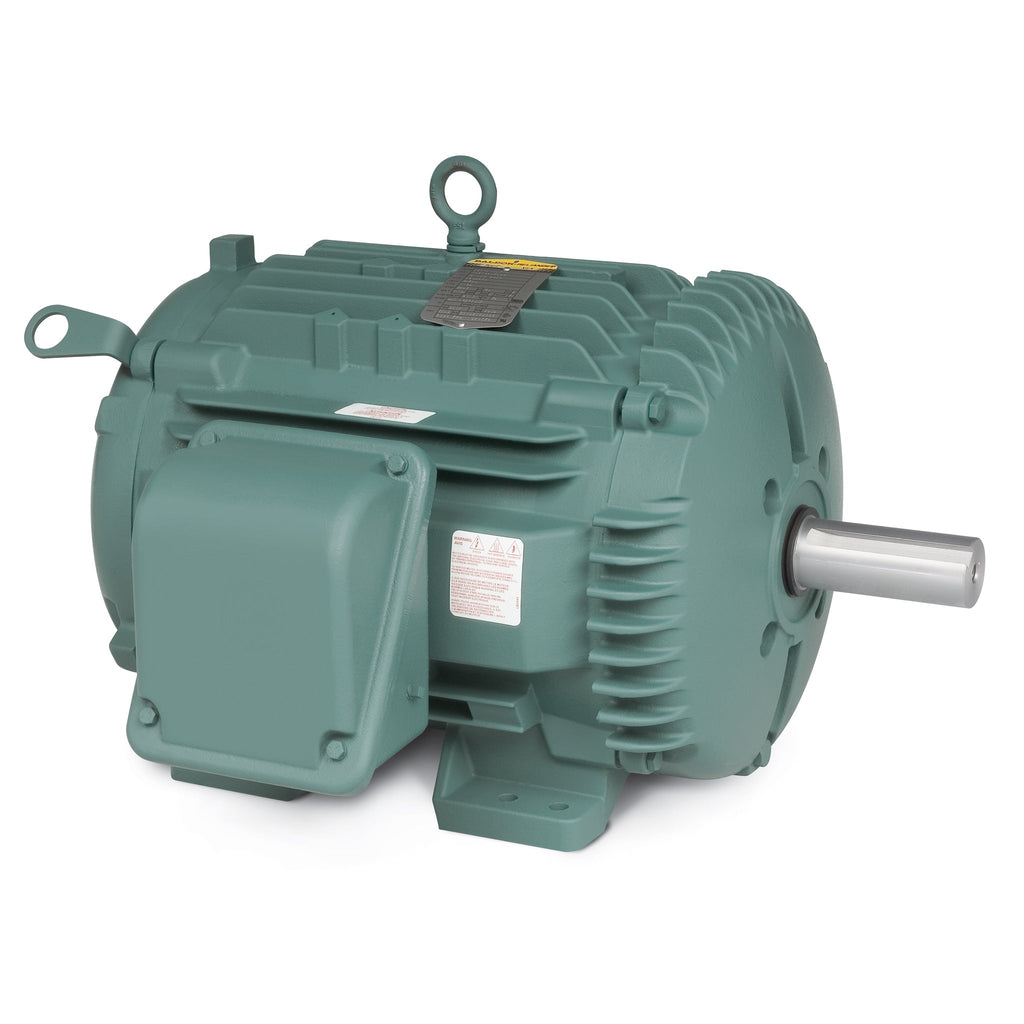

Baldor ECTM2333T Chiller/Cooling Tower Motor

The Baldor ECTM2333T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a power rating of 15 Air Overhp and a speed of 1765 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 15 Air Overhp
  • Speed: 1765 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 254T
  • Product Code: ECTM2333T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your cooling needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECTM2333T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568408308
Supplier Part Number ECTM2333T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CURUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 278.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM2333T
Current @ Voltage 36.200 A @ 230.0 V, 38.000 A @ 208.0 V, 18.100 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.1 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0944M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.09 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
