Baldor ECS101T2H3EF4 - 3 HP, 1800RPM, 3 Phase, 60HZ, 182T, TEFC, Top 60HZ Three Phase 3 HP

Save $842.75
BaldorSKU: ECS101T2H3EF4

Price:
Sale price$2,528.25 Regular price$3,371.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

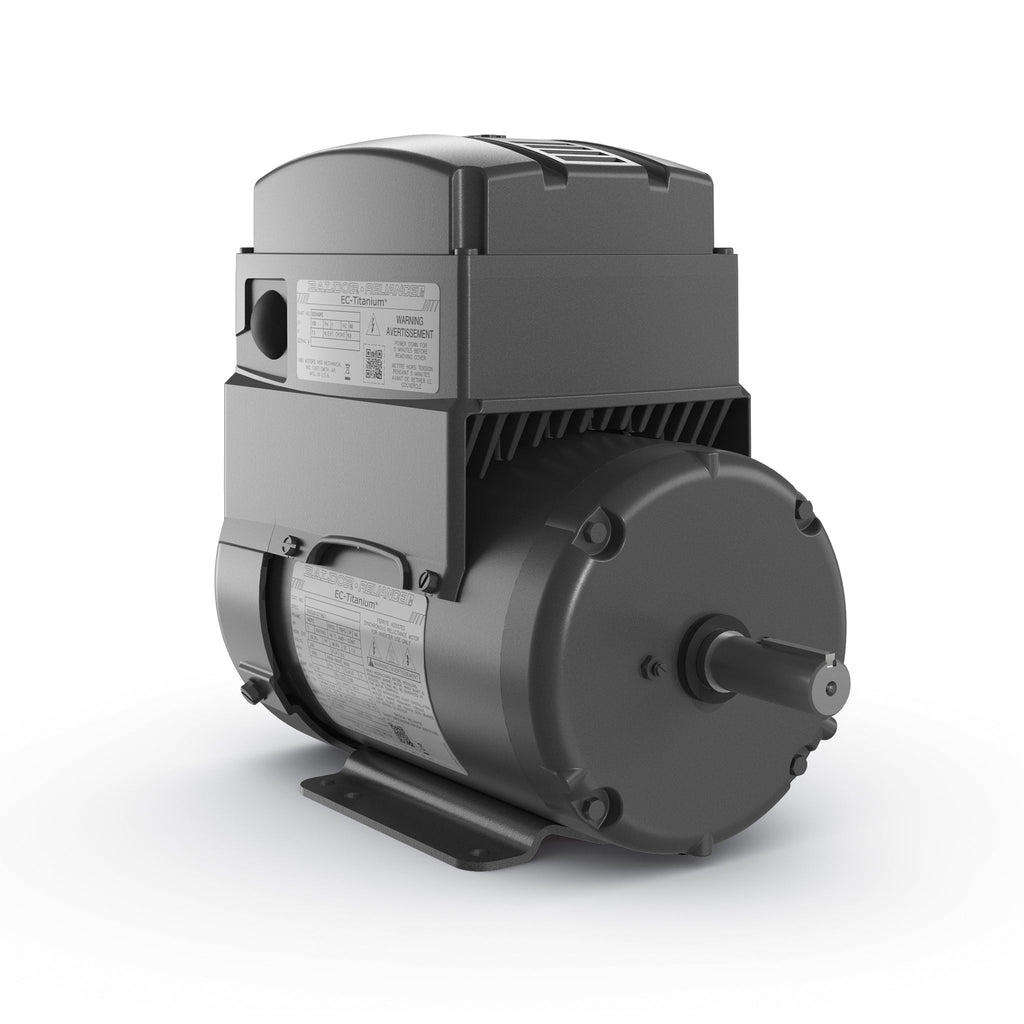

Baldor-Reliance EC Titanium Motors - ECS101T2H3EF4

Upgrade your industrial applications with the Baldor-Reliance EC Titanium Motor, featuring a robust 3 HP power output and a reliable 1800 RPM speed. This high-performance motor operates on a 3-phase, 60Hz power supply, making it ideal for various demanding environments.

Key Specifications:

  • Power: 3 HP
  • Speed: 1800 RPM
  • Phase: 3 PH
  • Frequency: 60 HZ
  • Frame Size: 182T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

The Baldor ECS101T2H3EF4 motor is designed for durability and efficiency, making it a top choice for various applications. Whether you need it for pumps, fans, or other machinery, this motor delivers exceptional performance and reliability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568955765
Supplier Part Number ECS101T2H3EF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 71.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS101T2H3EF4
Constant Torque Speed Range 6
Current @ Voltage 7.300 A @ 230.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.3 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3624B
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.71 IN
Phase 3
Power Factor 97
Pulley Face Code Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
