Baldor ECS101M0H1DB4 - 1 HP, 1800RPM, 3 Phase, 60HZ, 145TC, 3516B, TEFC, F1 60HZ Three Phase 1 HP

Save $394.25
BaldorSKU: ECS101M0H1DB4

Price:
Sale price$1,182.75 Regular price$1,577.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

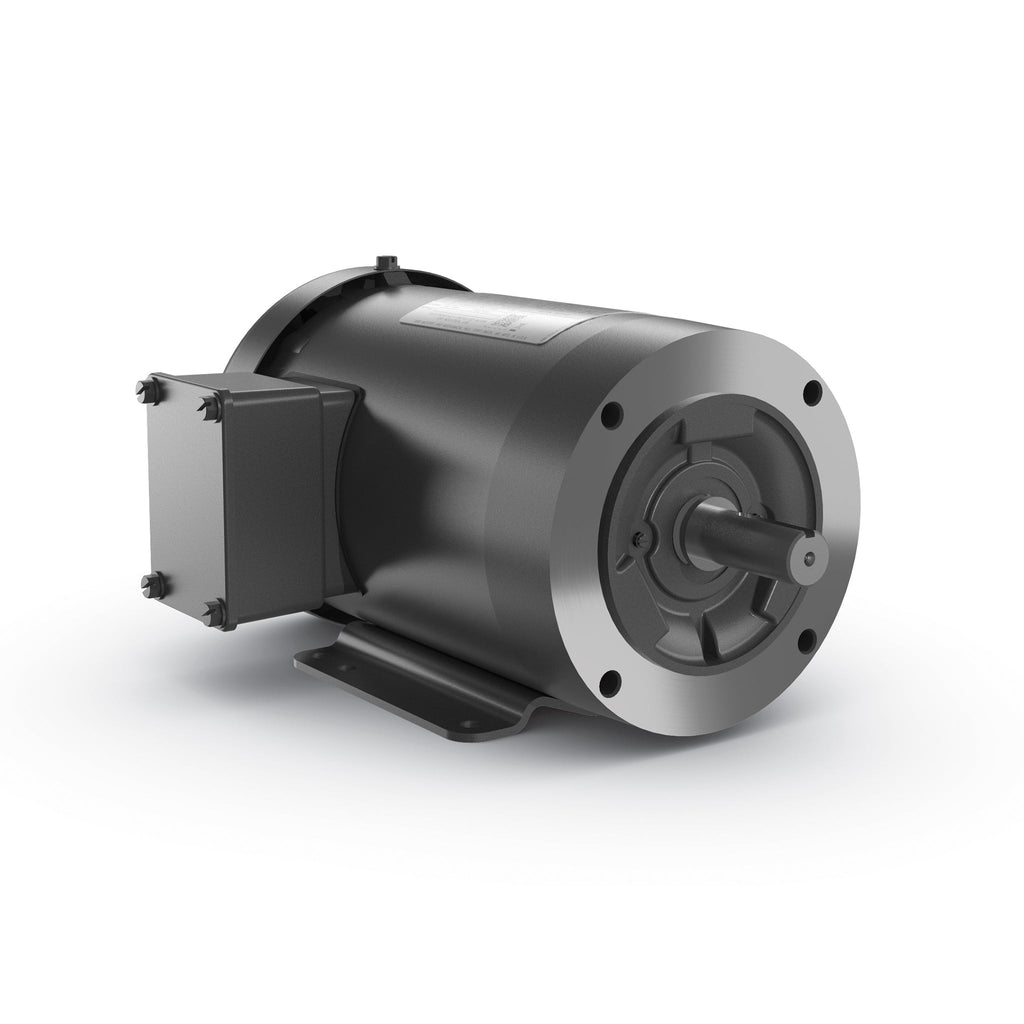

Baldor-Reliance EC Titanium Motor - 1 HP, 1800 RPM, 3 Phase

The Baldor ECS101M0H1DB4 is a high-performance EC Titanium Motor designed for efficiency and reliability. With a power output of 1 HP and a speed of 1800 RPM, this motor is ideal for a variety of industrial applications. It operates on a 3 Phase system at 60HZ, ensuring optimal performance in demanding environments.

Key specifications include:

  • Frame Size: 145TC
  • Model: 3516B
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568958384
Supplier Part Number ECS101M0H1DB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals WEEE, CULUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS101M0H1DB4
Constant Torque Speed Range 6
Current @ Voltage 1.200 A @ 460.0 V, 2.400 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code 3
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3516B
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 97
Pulley Face Code C-Face
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.5
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
