Baldor ECS100T8H2DB4 - 2 HP, 1800RPM, 3 Phase, 60HZ, 145TC, 3524B, TEFC, F1 60HZ Three Phase 2 HP

Save $755.50
BaldorSKU: ECS100T8H2DB4

Price:
Sale price$2,266.50 Regular price$3,022.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

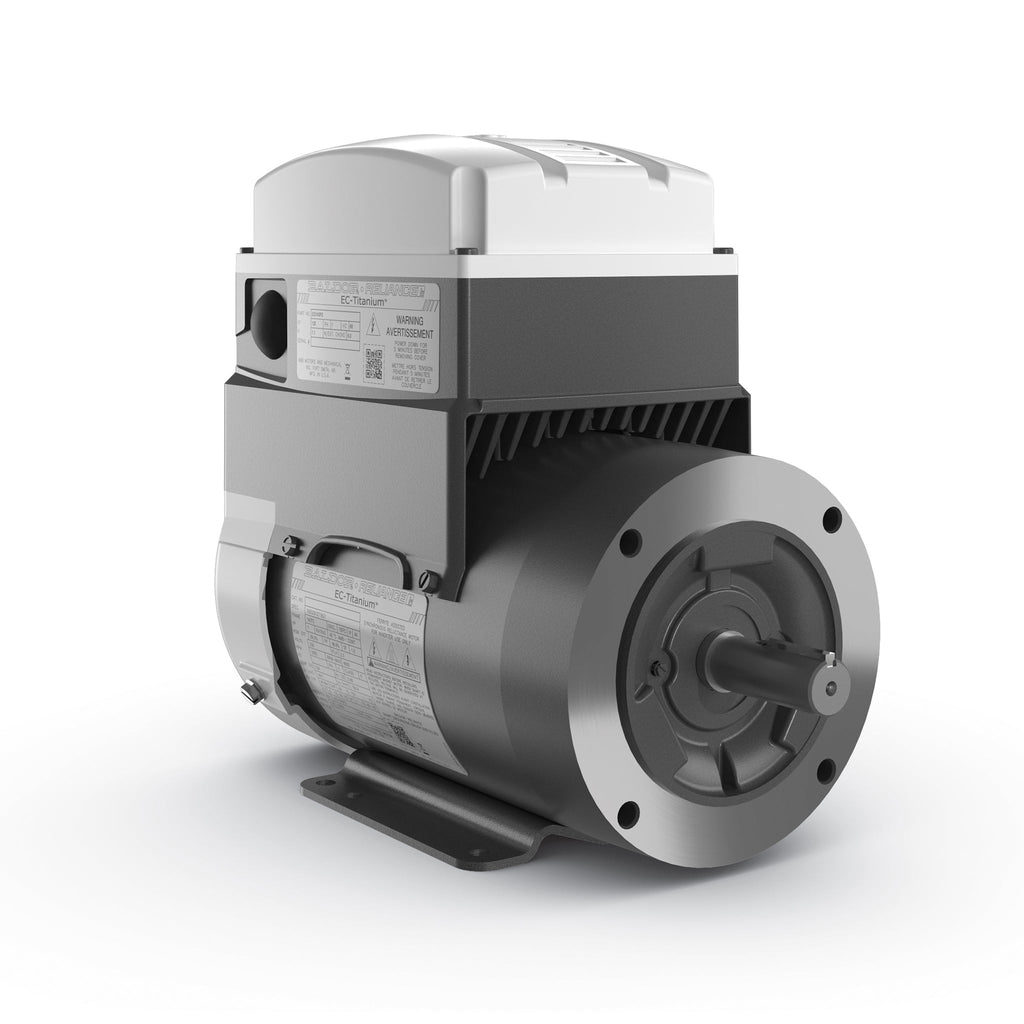

Baldor-Reliance EC Titanium Motors - ECS100T8H2DB4

Upgrade your industrial applications with the Baldor ECS100T8H2DB4, a high-performance 2 HP EC Titanium Motor designed for efficiency and reliability. Operating at 1800 RPM, this 3-phase motor is perfect for a variety of demanding environments. With a frequency of 60Hz and a frame size of 145TC, it ensures optimal performance and durability.

This motor features a Totally Enclosed Fan Cooled (TEFC) design, providing protection against dust and moisture, making it suitable for both indoor and outdoor applications. The F1 mounting configuration allows for versatile installation options, ensuring that it fits seamlessly into your existing setup.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, don’t hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our knowledgeable team is here to help!

Choose the Baldor ECS100T8H2DB4 for your motor needs and experience the reliability and efficiency that Baldor-Reliance is known for.

UPC 781568958353
Supplier Part Number ECS100T8H2DB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T8H2DB4
Constant Torque Speed Range 6
Current @ Voltage 4.800 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.3 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.8 a
Insulation Class F
Inverter Code 3
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3524B
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.38 IN
Phase 3
Power Factor 93
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
