Baldor ECS100T2H1DB4 - 1 HP, 1800RPM, 3 Phase, 60HZ, 143TC, 3516B, TEFC, F1 60HZ Three Phase 1 HP

Save $651.75
BaldorSKU: ECS100T2H1DB4

Price:
Sale price$1,955.25 Regular price$2,607.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

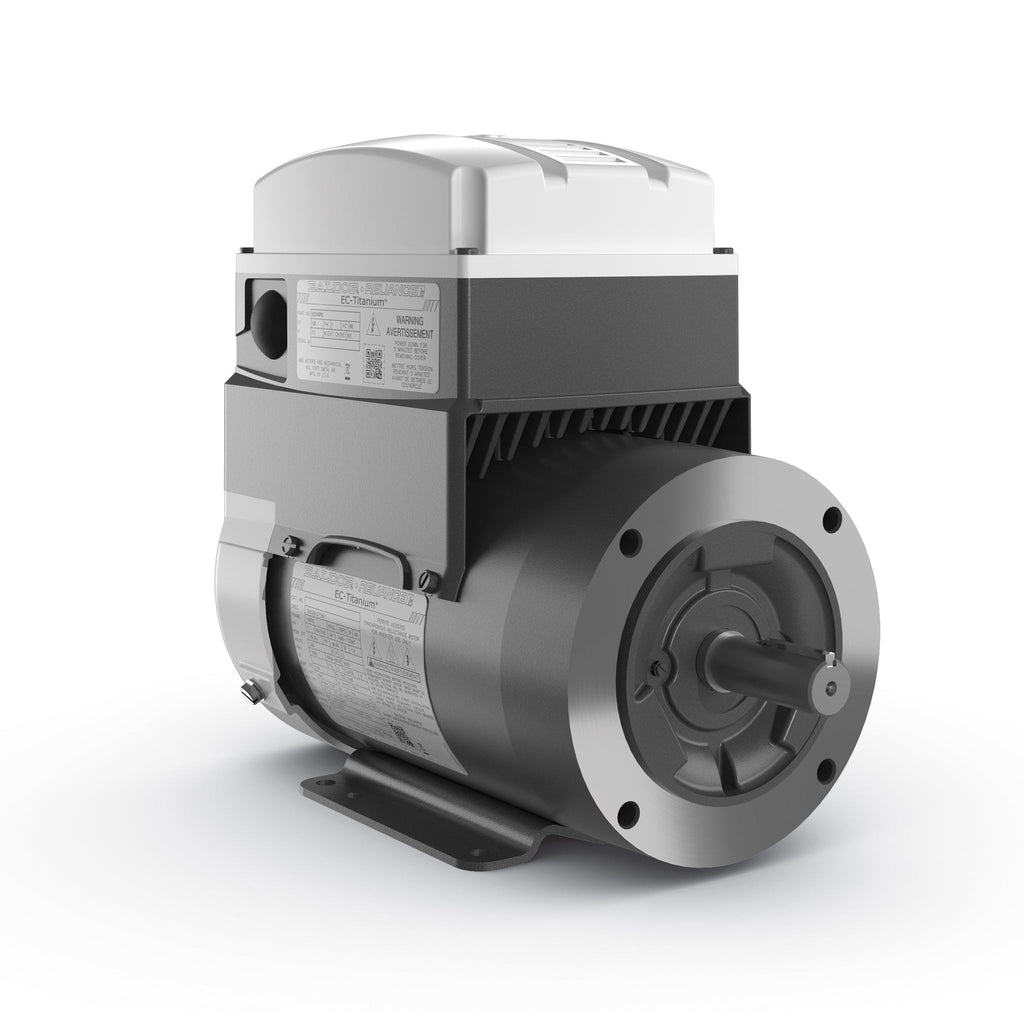

Baldor-Reliance EC Titanium Motors - ECS100T2H1DB4

Upgrade your industrial applications with the Baldor-Reliance EC Titanium Motor, featuring a robust 1 HP power output and a reliable 1800 RPM speed. Designed for three-phase operation at 60Hz, this motor is ideal for a variety of demanding environments.

Specifications:

  • Power: 1 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 143TC
  • Model: 3516B
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This motor is part of the EC Titanium series, known for its energy efficiency and durability, making it a perfect choice for various applications. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches this product. If you have any questions or need help finding the right item, don't hesitate to call us at (781) 281-8905.

UPC 781568958186
Supplier Part Number ECS100T2H1DB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 48.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T2H1DB4
Constant Torque Speed Range 6
Current @ Voltage 2.500 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code 3
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3516B
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.38 IN
Phase 3
Power Factor 98
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
