Baldor ECS100A4H7EB4 - 7.5 HP, 1800RPM, 3 Phase, 60HZ, 184TC, TEFC, Axial 60HZ Three Phase 7.5 HP

Save $1,121.50
BaldorSKU: ECS100A4H7EB4

Price:
Sale price$3,364.50 Regular price$4,486.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

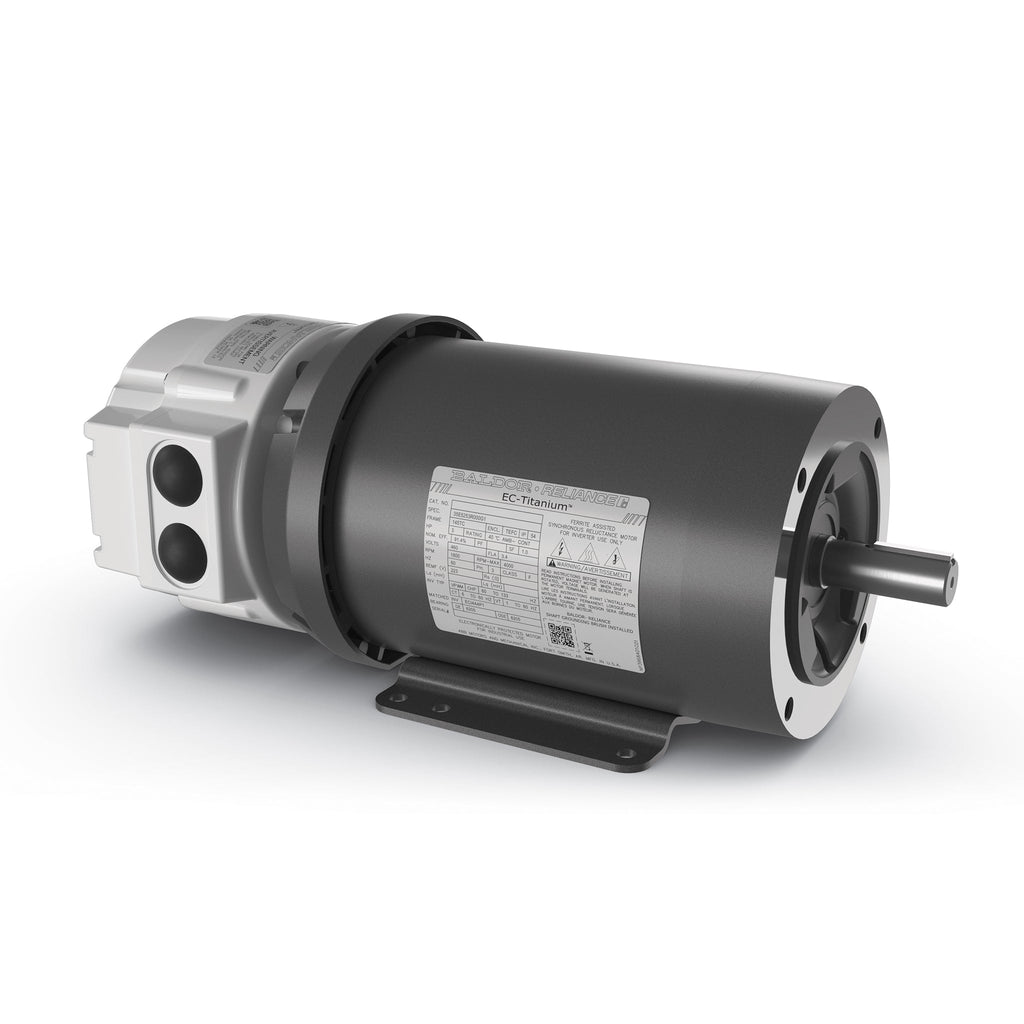

Baldor-Reliance EC Titanium Motors - ECS100A4H7EB4

Discover the power and efficiency of the Baldor-Reliance EC Titanium Motor, designed for high-performance applications. This robust motor features:

  • Power: 7.5 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Design: Axial

This motor is ideal for a variety of industrial applications, providing reliable performance and durability. The TEFC design ensures protection against dust and moisture, making it suitable for challenging environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100A4H7EB4 motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568958148
Supplier Part Number ECS100A4H7EB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 151.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100A4H7EB4
Constant Torque Speed Range 6
Current @ Voltage 8.800 A @ 460.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.8 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3648B
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 23.76 IN
Phase 3
Power Factor 94
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
