Baldor ECR9106T - 10 HP, 1175RPM, 3 Phase, 60HZ, 256T, 0962M, TEFC, F1 60HZ Three Phase 10 HP 0962 M Cable

Save $900.25
BaldorSKU: ECR9106T

Price:
Sale price$2,700.75 Regular price$3,601.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

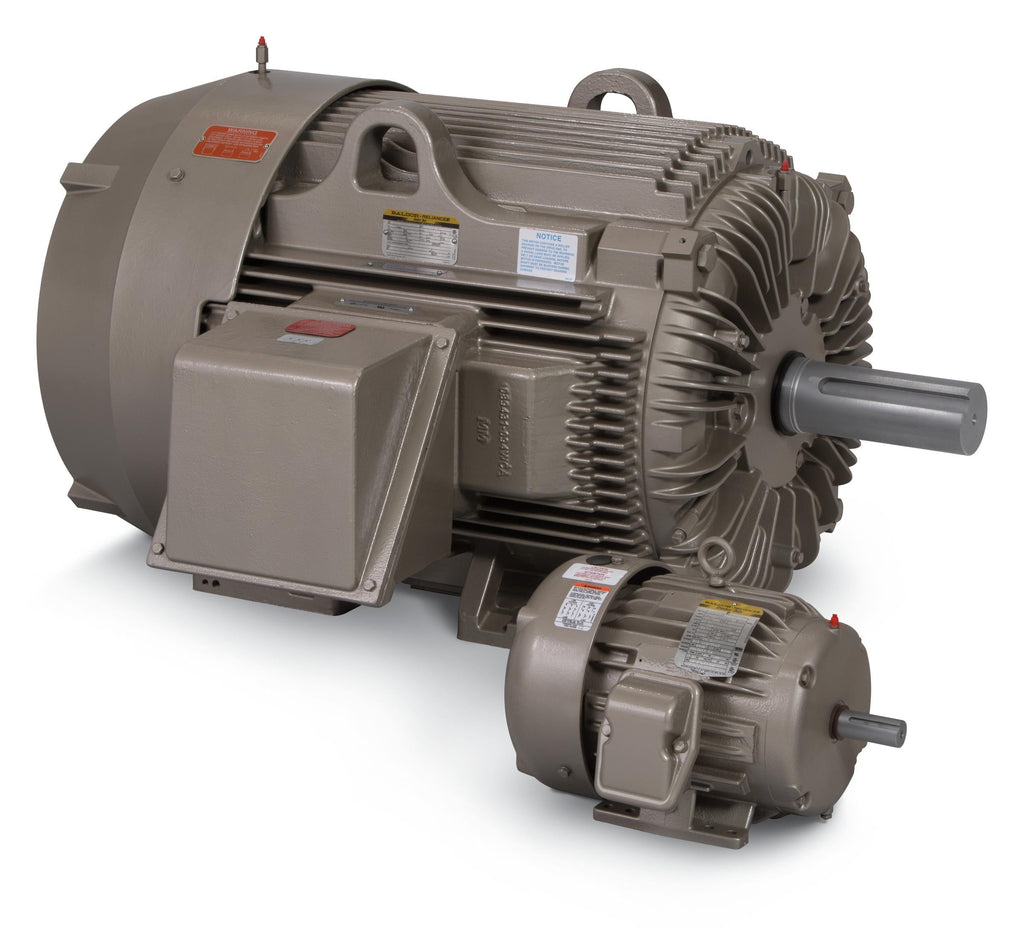

Baldor ECR9106T - 10 HP Crusher Duty Motor

The Baldor ECR9106T is a high-performance 10 HP Crusher Duty Motor designed for demanding applications. With a robust construction and reliable operation, this motor operates at 1175 RPM and is suitable for 3-phase power systems at 60Hz. Its TEFC (Totally Enclosed Fan Cooled) design ensures durability and protection against harsh environments, making it an ideal choice for industrial and commercial use.

Specifications:

  • Power: 10 HP
  • Speed: 1175 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256T
  • Product Code: ECR9106T
  • Type: Crusher Duty Motor

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECR9106T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568794364
Supplier Part Number ECR9106T
Category AC Motors
Subcategory Crusher Duty Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 355.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECR9106T
Constant Torque Speed Range 6
Current @ Voltage 14.000 A @ 460.0 V, 28.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 14.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 1800 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0962M
Mounting Arrangement F1
Number of Poles 6
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 24.77 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1175 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
