Baldor ECP84412T-5 - 125 HP, 3570RPM, 3 Phase, 60HZ, 444TS, A4468M, TEFC 60HZ Three Phase 125 HP

Save $7,050.00
BaldorSKU: ECP84412T-5

Price:
Sale price$21,150.00 Regular price$28,200.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

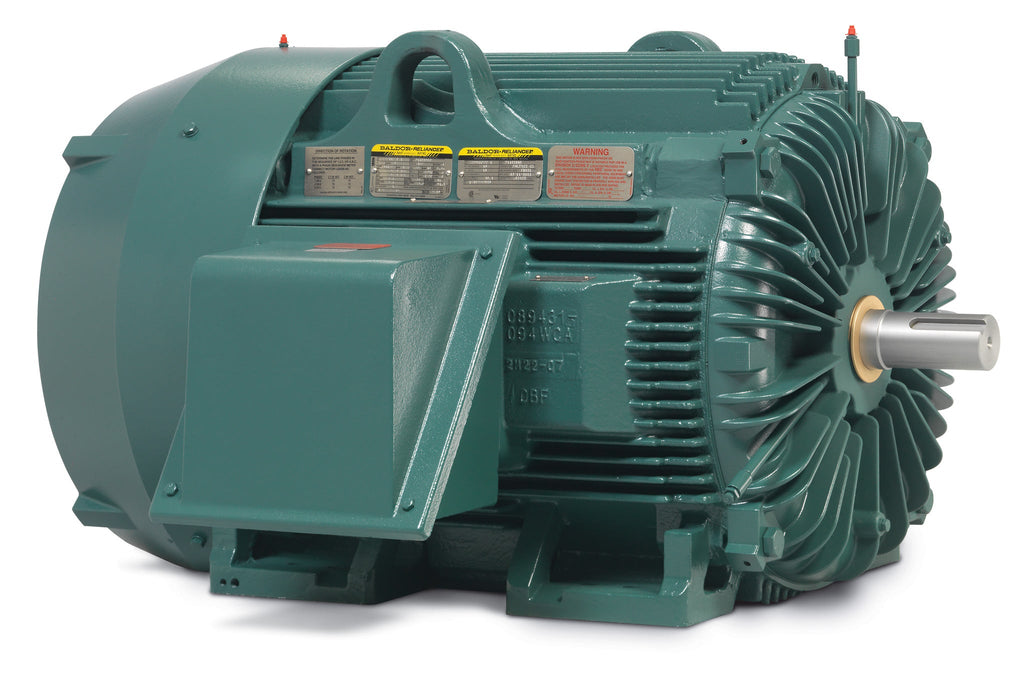

Baldor ECP84412T-5 - 125 HP IEEE 841XL Motor

Discover the power and reliability of the Baldor ECP84412T-5, a high-performance 125 HP motor designed for demanding applications. Operating at 3570 RPM, this 3-phase motor is engineered to meet the rigorous standards of the IEEE 841XL specification, ensuring durability and efficiency in various industrial settings.

Key Features:

  • Power: 125 HP
  • Speed: 3570 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 444TS
  • Model: A4468M
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)

This motor is ideal for applications requiring robust performance and reliability. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568499429
Supplier Part Number ECP84412T-5
Category AC Motors
Subcategory IEEE 841XL Motors
Agency Approvals C UR US, CCSA US, CCSAUSEEV, CURUS, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1799.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECP84412T-5
Constant Torque Speed Range 30-60
Current @ Voltage 110.000 A @ 575.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEFC
Enclosure Modification 841
Feedback Device NO FEEDBACK
Frame 444TS
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 110.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating IP56
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards None
Motor Type A4468M
Mounting Arrangement F1
No Load Current 25.0 a
Number of Poles 2
Output 125.000 hp
Output @ Frequency 125.000 HP @ 60 HZ
Overall Length 41.22 IN
Phase 3
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Phase Seq-Std Rot (CCWODE)
Shaft Slinger Indicator Shaft Slinger
Speed 3570 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
