Baldor ECP84403T-4 - 60 HP, 1185RPM, 3 Phase, 60HZ, 404T, TEFC, Foot, 60HZ Three Phase 60 HP

Save $5,783.50
BaldorSKU: ECP84403T-4

Price:
Sale price$17,350.50 Regular price$23,134.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

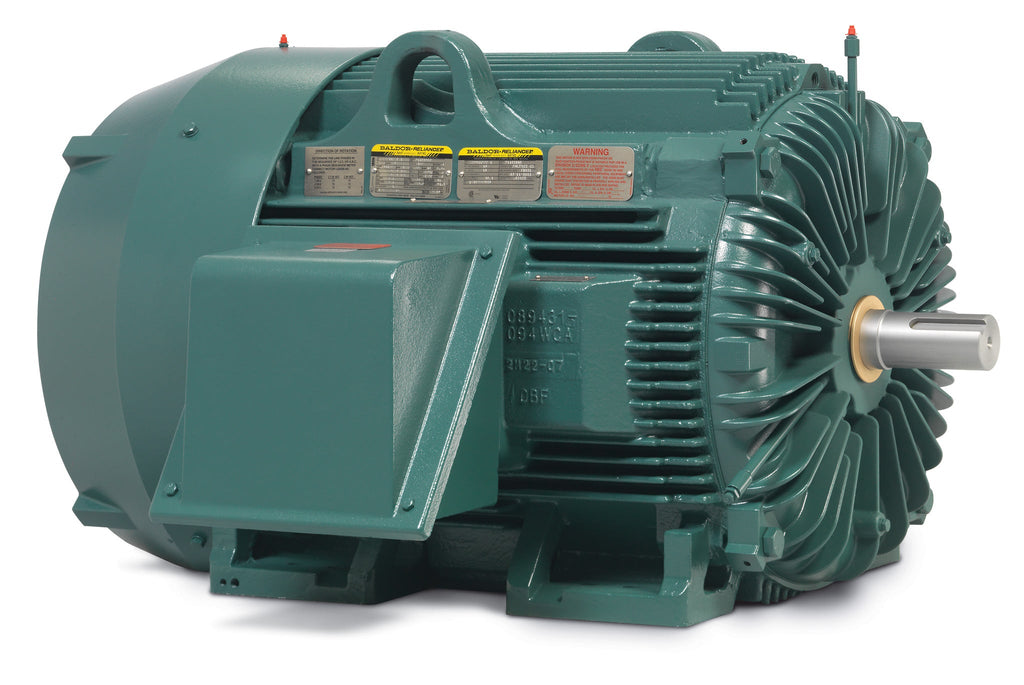

Baldor ECP84403T-4 - 60 HP IEEE 841XL Motor

Discover the power and reliability of the Baldor ECP84403T-4, a high-performance 60 HP motor designed for demanding applications. Operating at 1185 RPM, this 3-phase motor is engineered to deliver exceptional efficiency and durability, making it an ideal choice for various industrial settings.

Key Features:

  • Power: 60 HP
  • Speed: 1185 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 404T
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Mounting: Foot-mounted

This motor is part of the Baldor-Reliance IEEE 841XL Motors series, known for their robust construction and superior performance in harsh environments. Whether you need a replacement for your existing pump or are looking to upgrade your system, the Baldor ECP84403T-4 is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568210468
Supplier Part Number ECP84403T-4
Category AC Motors
Subcategory IEEE 841XL Motors
Product Family Other
Agency Approvals CCSAUSEEV, CURUS, CURUSEEV, CCSA US, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 1271.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECP84403T-4
Constant Torque Speed Range 6-60
Current @ Voltage 69.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEFC
Enclosure Modification 841
Feedback Device NO FEEDBACK
Frame 404T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3A
Heater Indicator No Heater
High Voltage Full Load Amps 69.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating IP56
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards None
Motor Type A40064M
Mounting Arrangement F1
No Load Current 20.9 a
Number of Poles 6
Output 60.000 hp
Output @ Frequency 60.000 HP @ 60 HZ
Overall Length 38.04 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1185 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
