Baldor ECP83581T-4 - 1 HP, 1770RPM, 3 Phase, 60HZ, 143T, 0520M, TEFC, F1 60HZ Three Phase 1 HP 0520 M Cable

Save $450.00
BaldorSKU: ECP83581T-4

Price:
Sale price$1,350.00 Regular price$1,800.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

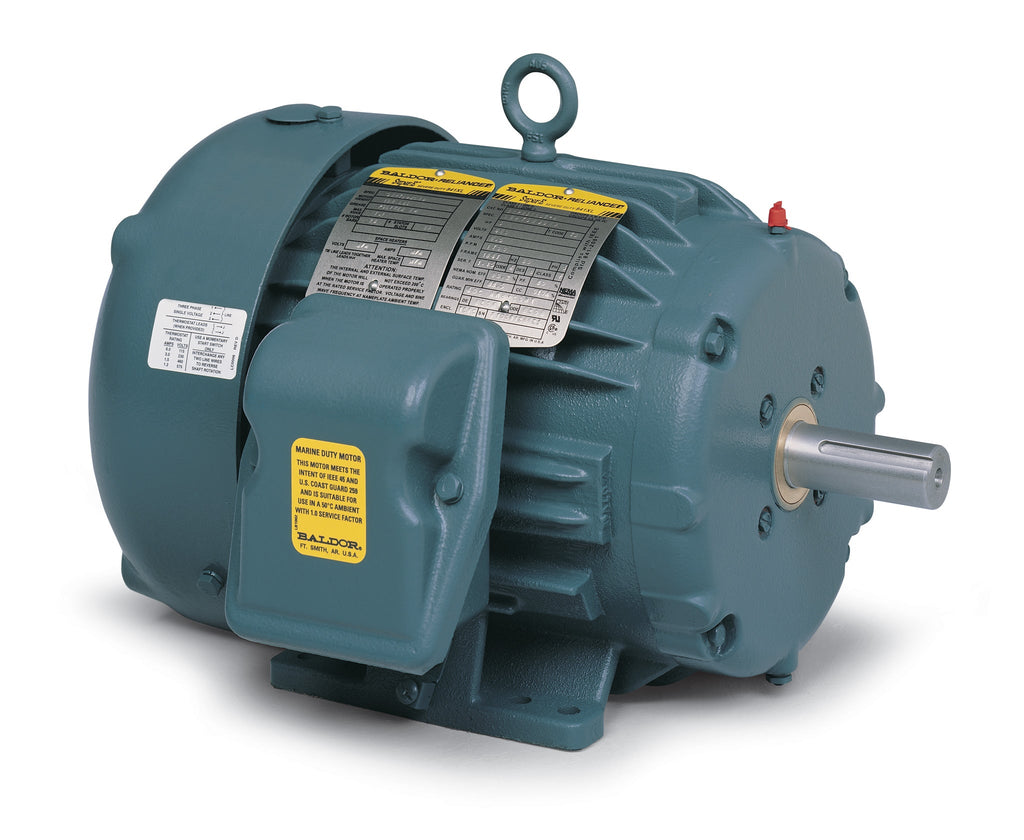

Baldor ECP83581T-4 - 1 HP IEEE 841XL Motor

Discover the reliability and performance of the Baldor ECP83581T-4, a premium 1 HP, 1770 RPM, 3-phase motor designed for demanding applications. This motor operates at 60Hz and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in various environments.

Specifications:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 143T
  • Enclosure: TEFC
  • Product Code: ECP83581T-4

This motor is part of the Baldor-Reliance IEEE 841XL Motors series, known for their exceptional performance and energy efficiency. Ideal for pump applications, this motor is a perfect choice for those seeking a reliable replacement.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568210949
Supplier Part Number ECP83581T-4
Category AC Motors
Subcategory IEEE 841XL Motors
Product Family Chem Process S/P 32-8 IEEE 841
Agency Approvals NEMA_PREMIUM, UR, CSA EEV, CCSA US
Ambient Temperature 40 °C
Approximate Weight (lbs) 62.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECP83581T-4
Constant Torque Speed Range 1.2
Current @ Voltage 1.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Enclosure Modification 841
Feedback Device NO FEEDBACK
Frame 143T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T4
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code N
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0520M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.88 IN
Phase 3
Power Factor 68
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
