Baldor ECP49258T-4 - 250 HP, 900RPM, 3 Phase, 60HZ, L449T, TEFC, Foot, 60HZ Three Phase 250 HP

Save $21,388.00
BaldorSKU: ECP49258T-4

Price:
Sale price$64,164.00 Regular price$85,552.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

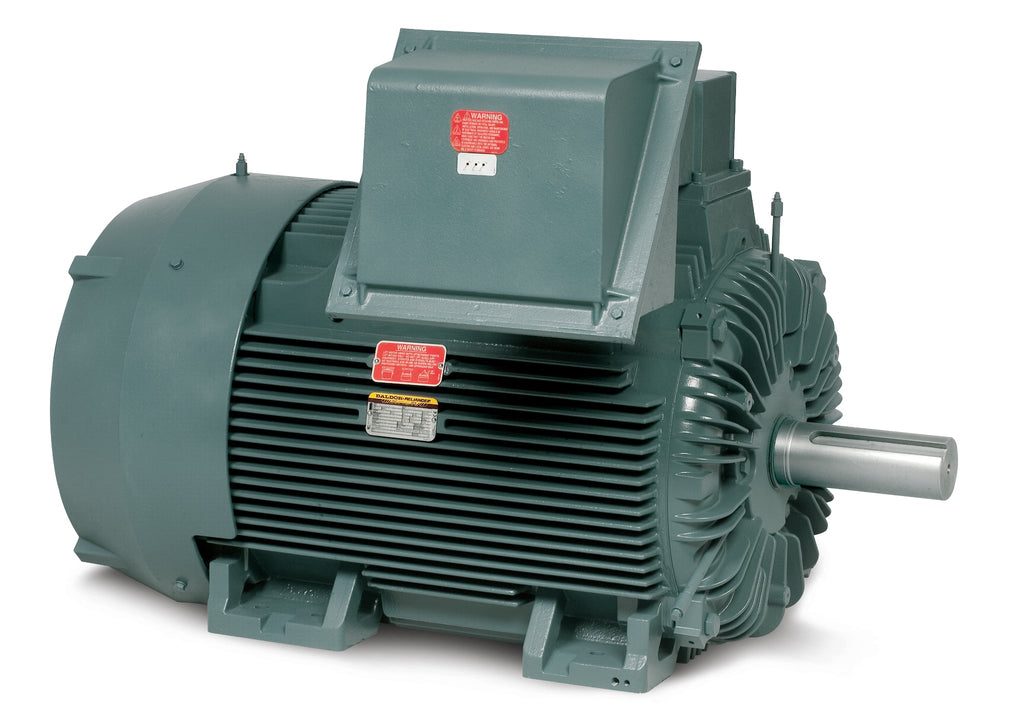

Baldor ECP49258T-4 - 250 HP Severe Duty XEX Motor

Introducing the Baldor ECP49258T-4, a robust and reliable 250 HP Severe Duty XEX Motor designed for demanding industrial applications. Operating at 900 RPM and powered by a three-phase, 60Hz electrical supply, this motor is engineered to deliver exceptional performance and durability.

Key Features:

  • Power: 250 HP
  • Speed: 900 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: L449T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Foot-mounted

The Baldor ECP49258T-4 is ideal for applications requiring high efficiency and reliability, making it a preferred choice for industries that demand severe duty performance.

At Pump-Stop, we are your trusted source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568749586
Supplier Part Number ECP49258T-4
Category AC Motors
Subcategory Severe Duty XEX Motors
Agency Approvals CCSAUSEEV, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 3430.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECP49258T-4
Constant Torque Speed Range 30-60
Current @ Voltage 288.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure TEFC
Enclosure Modification Severe Duty Features
Feedback Device NO FEEDBACK
Frame L449T
Frame Material Cast Iron
Frame Prefix L
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T2C
Heater Indicator No Heater
High Voltage Full Load Amps 288.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44176M
Mounting Arrangement F1
Number of Poles 8
Output 250.000 hp
Output @ Frequency 250.000 HP @ 60 HZ
Overall Length 60.13 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 890 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 900 rpm
Synchronous Speed @ Frequency 900 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
