Baldor ECP44352T-4 - 350 HP, 3575RPM, 3 Phase, 60HZ, 449TS, A44144M, Tef 60HZ Three Phase 350 HP

Save $21,963.50
BaldorSKU: ECP44352T-4

Price:
Sale price$65,890.50 Regular price$87,854.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

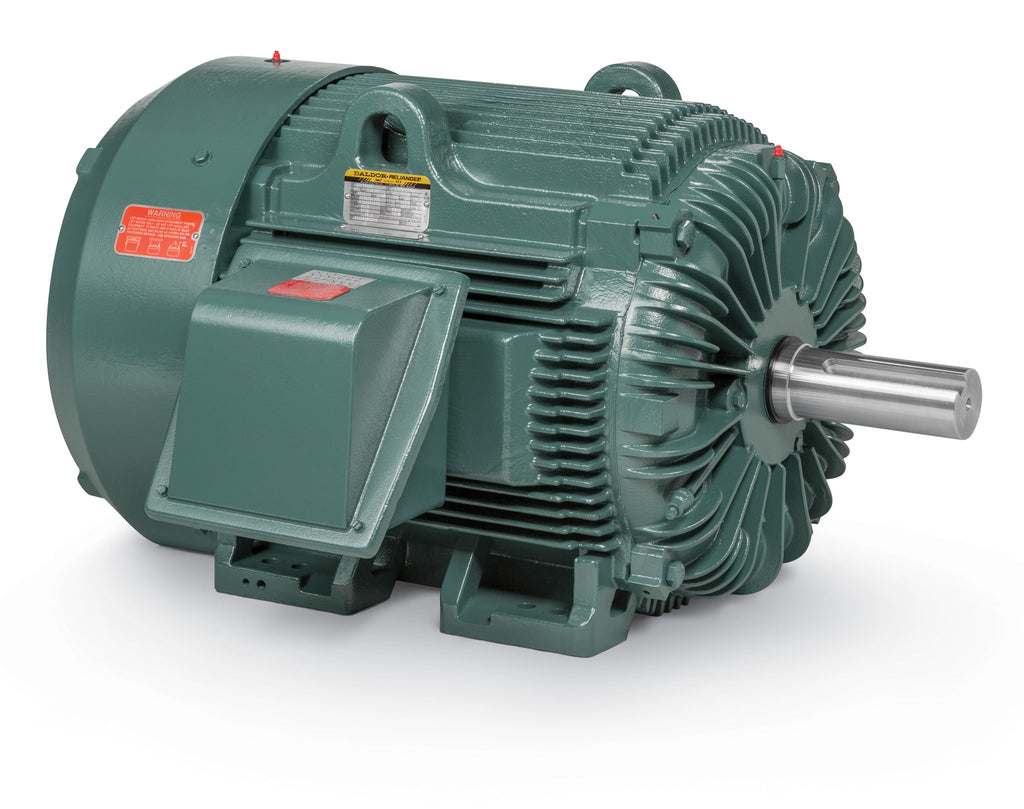

Baldor-Reliance Severe Duty XEX Motor - ECP44352T-4

Introducing the Baldor ECP44352T-4, a high-performance Severe Duty XEX Motor designed for demanding applications. With a robust power output of 350 HP and a speed of 3575 RPM, this 3-phase motor operates efficiently at 60Hz. It features a 449TS frame size and is built to withstand harsh environments, making it an ideal choice for industrial settings.

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and reliability. The A44144M model is engineered for durability, providing long-lasting performance in various applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Explore our selection of Baldor-Reliance Motors & Drives, including the Severe Duty XEX Motors, and experience the quality and performance that professionals trust.

UPC 781568137215
Supplier Part Number ECP44352T-4
Category AC Motors
Subcategory Severe Duty XEX Motors
Agency Approvals CCSAUSEEV, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 2965.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECP44352T-4
Constant Torque Speed Range 30-60
Current @ Voltage 370.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 449TS
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T2C
Heater Indicator No Heater
High Voltage Full Load Amps 370.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 2/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44144M
Mounting Arrangement F1
Number of Poles 2
Output 350.000 hp
Output @ Frequency 350.000 HP @ 60 HZ
Overall Length 49.71 IN
Phase 3
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3575 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
