Baldor ECP4113T-4 - 30 HP, 890RPM, 3 Phase, 60HZ, 364T, A36050M, TEFC, F 60HZ Three Phase 30 HP

Save $4,618.00
BaldorSKU: ECP4113T-4

Price:
Sale price$13,854.00 Regular price$18,472.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

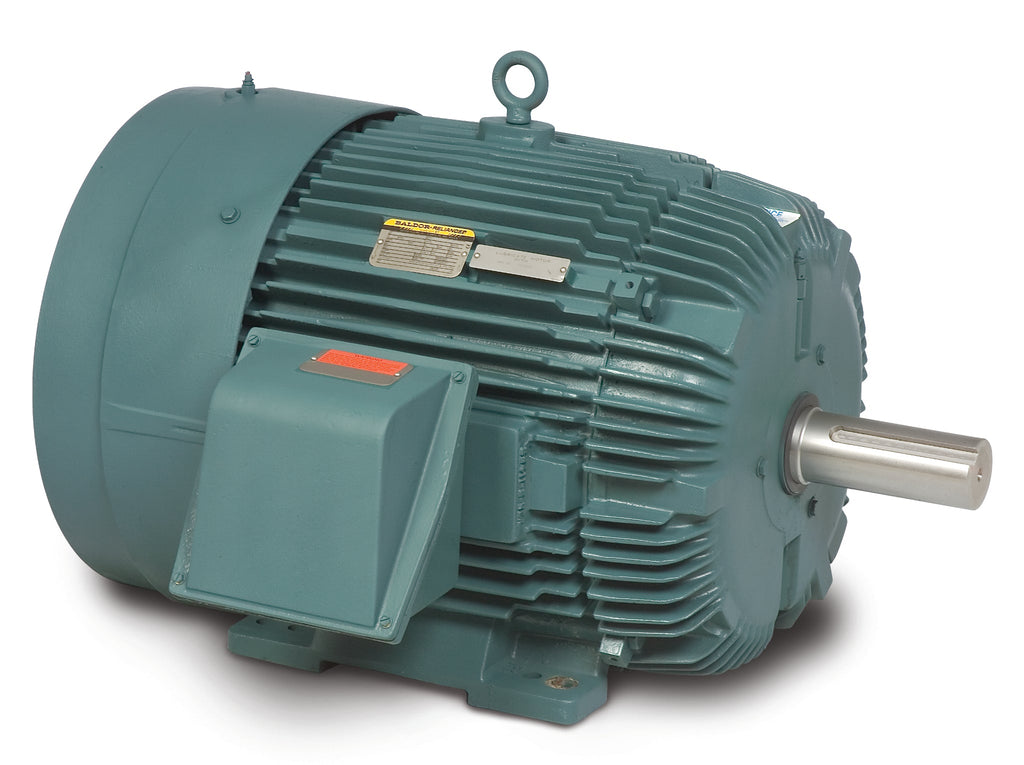

Baldor ECP4113T-4 - 30 HP Severe Duty XEX Motor

The Baldor ECP4113T-4 is a high-performance 30 HP Severe Duty XEX Motor designed for demanding applications. Operating at 890 RPM, this robust motor is engineered for 3-phase power and is compatible with 60Hz systems. With a frame size of 364T and a TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and reliability in harsh environments.

Key Features:

  • Power: 30 HP
  • Speed: 890 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 364T
  • Type: Severe Duty XEX Motor
  • Product Code: ECP4113T-4

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568728710
Supplier Part Number ECP4113T-4
Category AC Motors
Subcategory Severe Duty XEX Motors
Product Family General Industrial
Agency Approvals CCSAUSEEV, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 813.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number ECP4113T-4
Constant Torque Speed Range 6-60
Current @ Voltage 39.300 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 364T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group Class I, Group A,B,C & D
Haz Area Division Division II
Haz Area Temp Code T3
Heater Indicator No Heater
High Voltage Full Load Amps 39.3 a
Insulation Class B
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 3 @ 6 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A36050M
Mounting Arrangement F1
Number of Poles 8
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 33.49 IN
Phase 3
Power Factor 77
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 890 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 900 rpm
Synchronous Speed @ Frequency 900 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
