Baldor EBM3714T-D - 10 HP, 1770RPM, 3 Phase, 60HZ, 215T, 3752M, TEFC, F1 60HZ Three Phase 10 HP 3752 M Cable

Save $1,792.50
BaldorSKU: EBM3714T-D

Price:
Sale price$5,377.50 Regular price$7,170.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

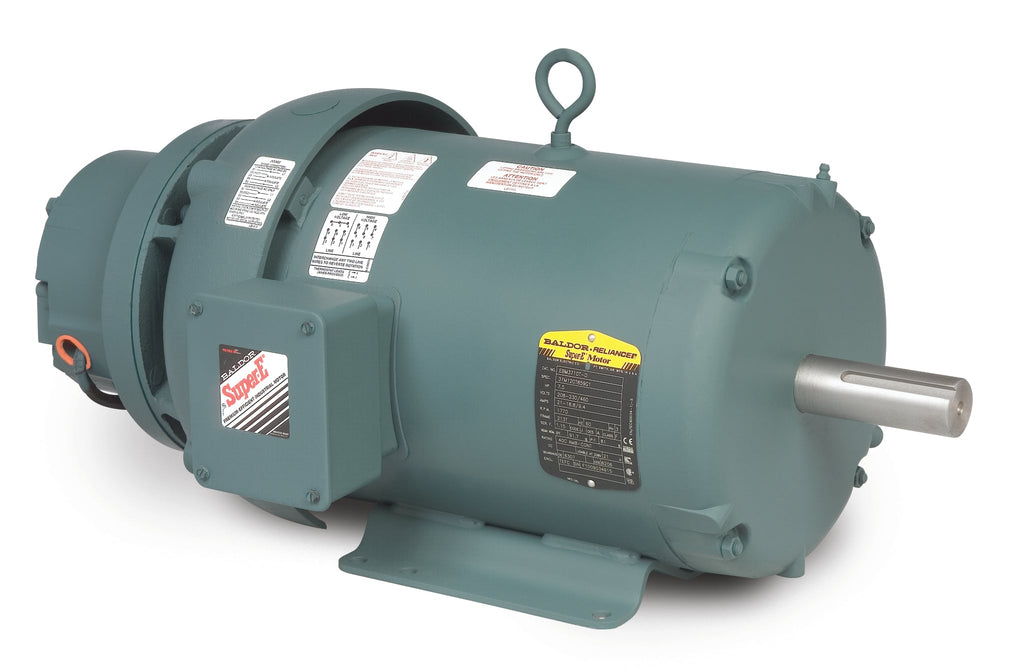

Baldor EBM3714T-D - 10 HP D-Series Brake Motor

Upgrade your industrial applications with the Baldor EBM3714T-D, a powerful 10 HP D-Series Brake Motor designed for efficiency and reliability. Operating at 1770 RPM, this three-phase motor is optimized for 60Hz power supply, making it an ideal choice for various heavy-duty tasks.

Key Features:

  • Power: 10 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215T
  • Model: 3752M
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EBM3714T-D

This motor is built to withstand demanding environments, ensuring longevity and performance. Whether you are replacing an existing motor or upgrading your system, the Baldor EBM3714T-D is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568538517
Supplier Part Number EBM3714T-D
Category AC Motors
Subcategory D-Series Brake Motors
Product Family General Purpose
Agency Approvals CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 165.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 50.0 lb-ft
Catalog Number EBM3714T-D
Current @ Voltage 25.400 A @ 208.0 V, 24.000 A @ 230.0 V, 12.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3752M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 26.92 IN
Phase 3
Power Factor 85
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
