Baldor EBM3611T-D - 3 HP, 1760RPM, 3 Phase, 60HZ, 182T, 3628M, TEFC, F3 60HZ Three Phase 3 HP 3628 M Cable

Save $895.75
BaldorSKU: EBM3611T-D

Price:
Sale price$2,687.25 Regular price$3,583.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

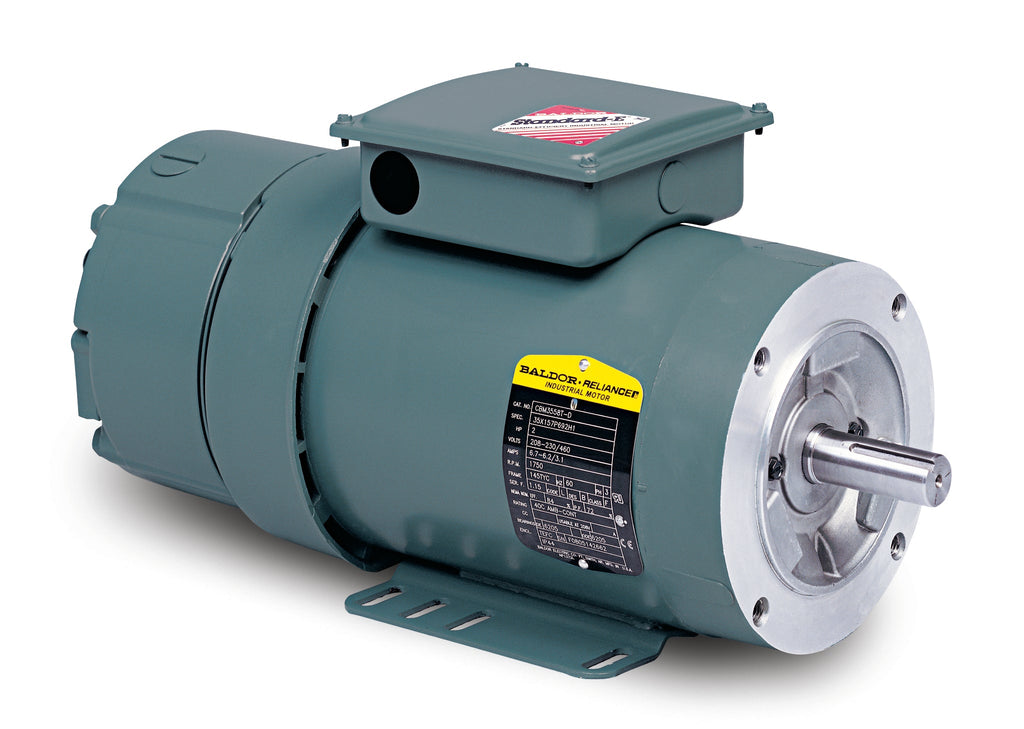

Baldor EBM3611T-D - 3 HP D-Series Brake Motor

The Baldor EBM3611T-D is a high-performance 3 HP D-Series Brake Motor designed for reliable operation in various industrial applications. With a speed of 1760 RPM and a robust 3-phase, 60Hz configuration, this motor is engineered to deliver exceptional torque and efficiency. It features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against dust and moisture.

Specifications:

  • Power: 3 HP
  • Speed: 1760 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 182T
  • Model: 3628M
  • Type: D-Series Brake Motor
  • Product Code: EBM3611T-D

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM3611T-D to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568538319
Supplier Part Number EBM3611T-D
Category AC Motors
Subcategory D-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 104.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 15.0 lb-ft
Catalog Number EBM3611T-D
Current @ Voltage 8.200 A @ 230.0 V, 8.600 A @ 208.0 V, 4.100 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.1 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3628M
Mounting Arrangement F3
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 21.63 IN
Phase 3
Power Factor 77
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1760 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
