Baldor EBM2334T - 20 HP, 1770RPM, 3 Phase, 60HZ, 256T, 0960M, TEFC, F1 60HZ Three Phase 20 HP 0960 M Cable

Save $3,637.50
BaldorSKU: EBM2334T

Price:
Sale price$10,912.50 Regular price$14,550.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

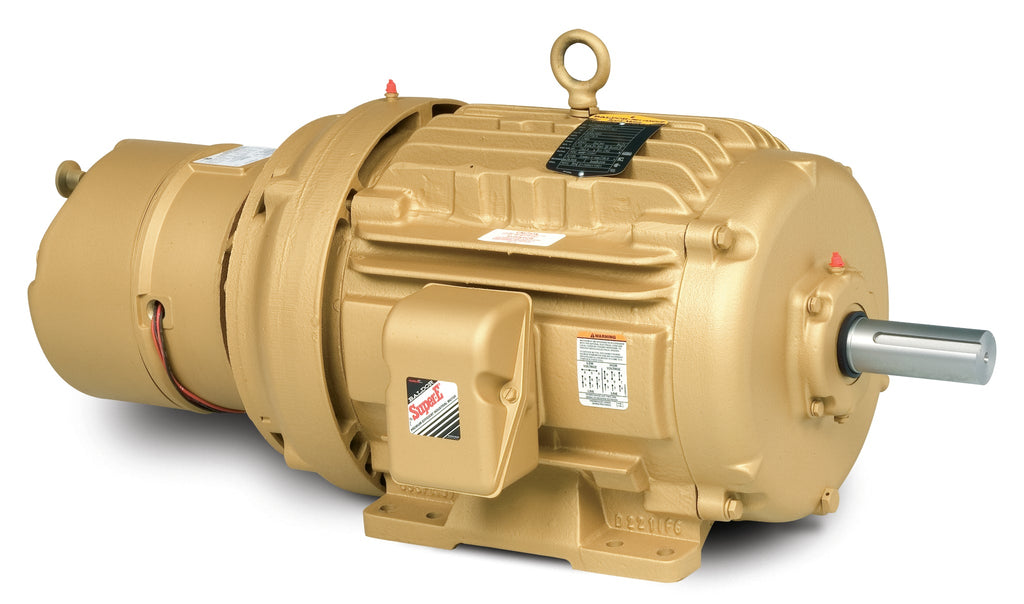

Baldor EBM2334T - 20 HP Short-Series Brake Motor

Upgrade your industrial applications with the Baldor EBM2334T, a powerful 20 HP Short-Series Brake Motor designed for efficiency and reliability. Operating at 1770 RPM, this 3-phase motor is optimized for 60Hz power supply, making it an ideal choice for various heavy-duty tasks.

Key Features:

  • Power: 20 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 256T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EBM2334T

This motor is perfect for applications requiring robust performance and durability. As a trusted vendor, Baldor ensures that you receive a product that meets high standards of quality and efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EBM2334T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568393215
Supplier Part Number EBM2334T
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 398.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 105.0 lb-ft
Catalog Number EBM2334T
Current @ Voltage 24.000 A @ 460.0 V, 48.000 A @ 230.0 V, 52.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0960M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 33.57 IN
Phase 3
Power Factor 83
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
