Baldor D2301 - .33 HP, 1750RPM, DC, 56, 3513D, TEFC, F1 33 HP

Save $1,125.20
BaldorSKU: D2301

Price:
Sale price$1,687.80 Regular price$2,813.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

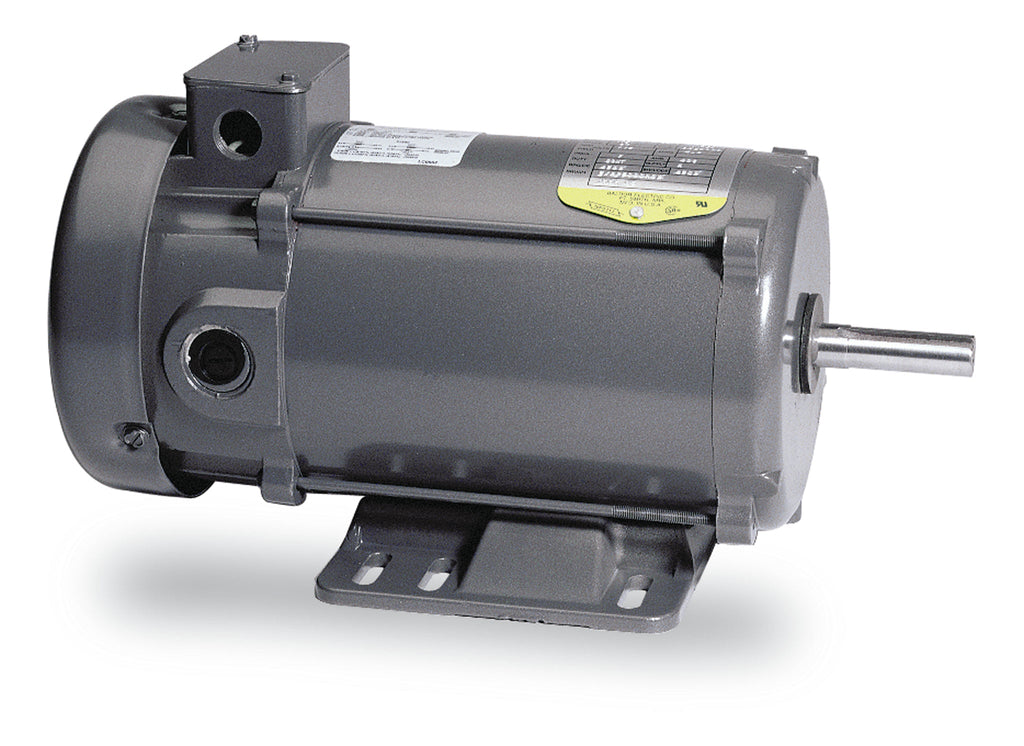

Baldor D2301 - .33 HP DC Motor

Discover the reliability and performance of the Baldor D2301 fractional horsepower motor, designed for a variety of applications. With a power output of .33 HP and a speed of 1750 RPM, this DC motor is perfect for those seeking efficiency and durability.

Key specifications include:

  • Type: DC Motor
  • Power: .33 HP
  • Speed: 1750 RPM
  • Frame Size: 56
  • Model: 3513D
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

As a trusted vendor, Baldor is known for its high-quality motors and drives, making the D2301 an excellent choice for your needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor D2301. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568124628
Supplier Part Number D2301
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Armature Current 1.7 a
Armature Inertia 5.073 lb-ft2
Armature Voltage 230 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Frame 56
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 18 AWG, 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.33 hp
Overall Length 13.06 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
