Baldor CWDM3539 - .5 HP, 1175RPM, 3 Phase, 60HZ, 56C, 3522M, Tenv, F1 60HZ Three Phase 5 HP 3522 M Cable 56°C

Save $544.00
BaldorSKU: CWDM3539

Price:
Sale price$816.00 Regular price$1,360.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

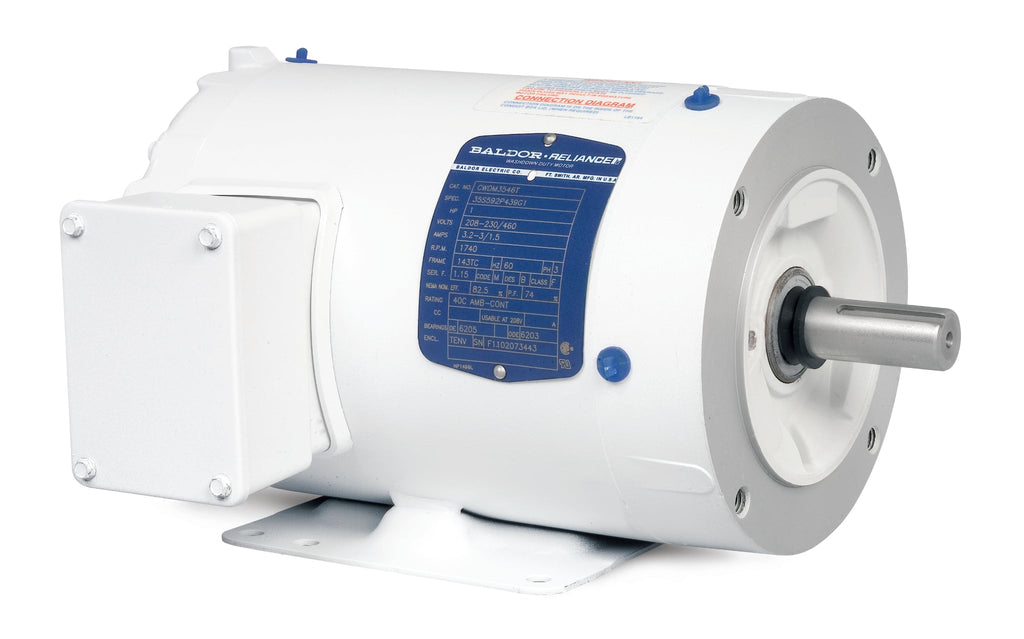

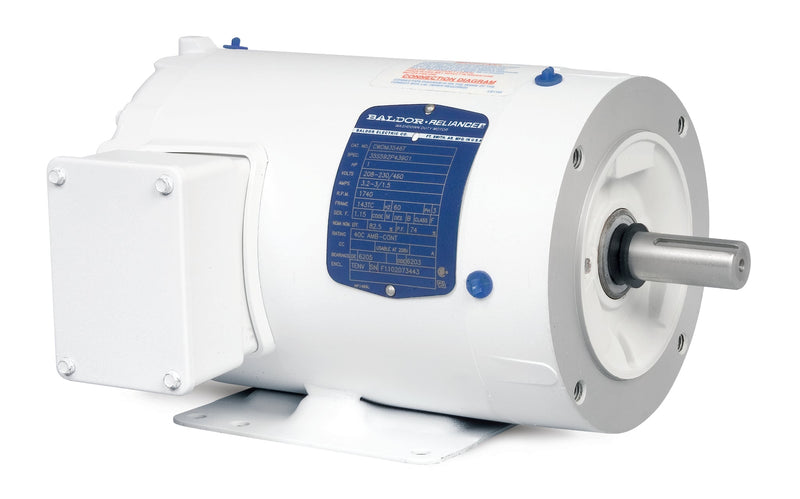

Baldor CWDM3539 - .5 HP White Washdown Motor

The Baldor CWDM3539 is a high-performance .5 HP White Washdown Motor designed for reliable operation in demanding environments. With a speed of 1175 RPM and a robust 3-phase, 60Hz configuration, this motor is ideal for various applications requiring durability and efficiency.

  • Power: .5 HP
  • Speed: 1175 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CWDM3539

This motor is part of the Baldor-Reliance White Washdown Motors series, known for their exceptional performance in wet and corrosive environments. Pump-Stop is your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor CWDM3539. If you have any questions or need help finding the right item, feel free to call us at (781) 281-8905.

UPC 781568218389
Supplier Part Number CWDM3539
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CWDM3539
Current @ Voltage 1.000 A @ 460.0 V, 2.000 A @ 208.0 V, 2.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.06 IN
Phase 3
Power Factor 57
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1175 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
