Baldor CWDL3513 - 1.5 HP, 3450RPM, 1 Phase, 60HZ, 56C, 3524L, TEFC, F1 60HZ Single Phase 1.5 HP 56°C

Save $577.60
BaldorSKU: CWDL3513

Price:
Sale price$866.40 Regular price$1,444.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

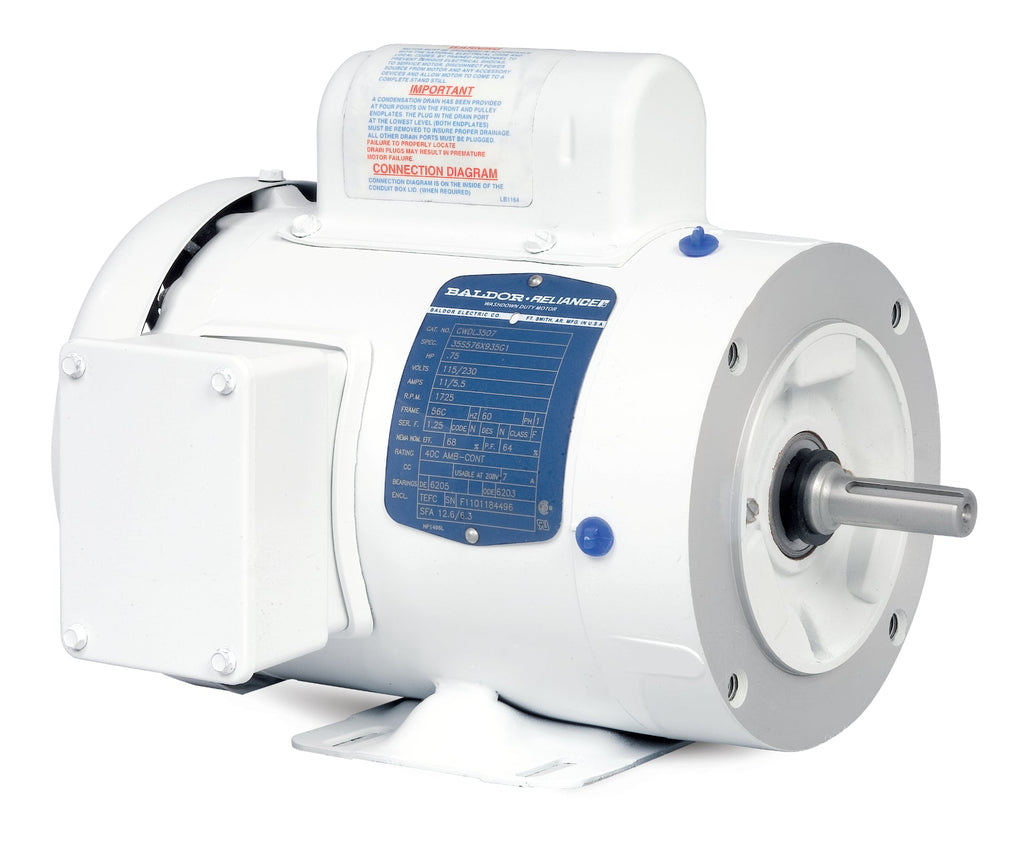

Baldor CWDL3513 - 1.5 HP White Washdown Motor

The Baldor CWDL3513 is a high-performance 1.5 HP White Washdown Motor designed for demanding applications. Operating at 3450 RPM and powered by a single-phase 60Hz supply, this motor is built to deliver reliable performance in wet and harsh environments. With a TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against moisture and contaminants.

Key Features:

  • Power: 1.5 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Model: 3524L
  • Type: White Washdown Motor
  • Product Code: CWDL3513

At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CWDL3513 to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568108390
Supplier Part Number CWDL3513
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals C UR US, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CWDL3513
Current @ Voltage 8.000 A @ 230.0 V, 8.400 A @ 208.0 V, 16.000 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3524L
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 13.22 IN
Phase 1
Power Factor 85
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
