Baldor CWDL3510 - 1 HP, 1725RPM, 1 Phase, 60HZ, 56C, 3524L, TEFC, F1, N 60HZ Single Phase 1 HP 56°C

Save $573.60
BaldorSKU: CWDL3510

Price:
Sale price$860.40 Regular price$1,434.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

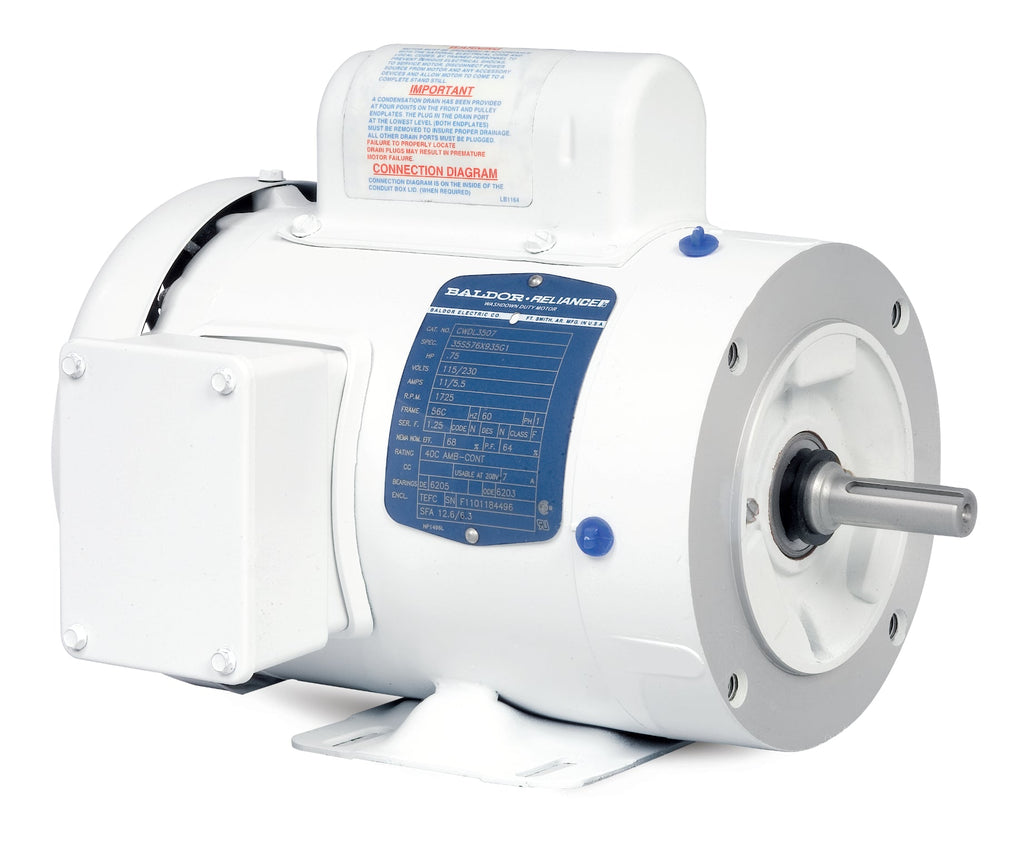

Baldor CWDL3510 White Washdown Motor

The Baldor CWDL3510 is a high-performance 1 HP White Washdown Motor designed for reliable operation in demanding environments. With a speed of 1725 RPM and a single-phase power supply at 60Hz, this motor is ideal for various applications requiring durability and efficiency.

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CWDL3510

This motor is built to withstand harsh conditions, making it a perfect choice for washdown applications. Its TEFC design ensures protection against moisture and contaminants, enhancing its longevity and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CWDL3510. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568108383
Supplier Part Number CWDL3510
Category AC Motors
Subcategory White Washdown Motors
Product Family Wash Down
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CWDL3510
Current @ Voltage 12.500 A @ 115.0 V, 6.300 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 74.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.3 a
Insulation Class F
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3528L
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 13.23 IN
Phase 1
Power Factor 69
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
