Baldor Replacement Part — Component

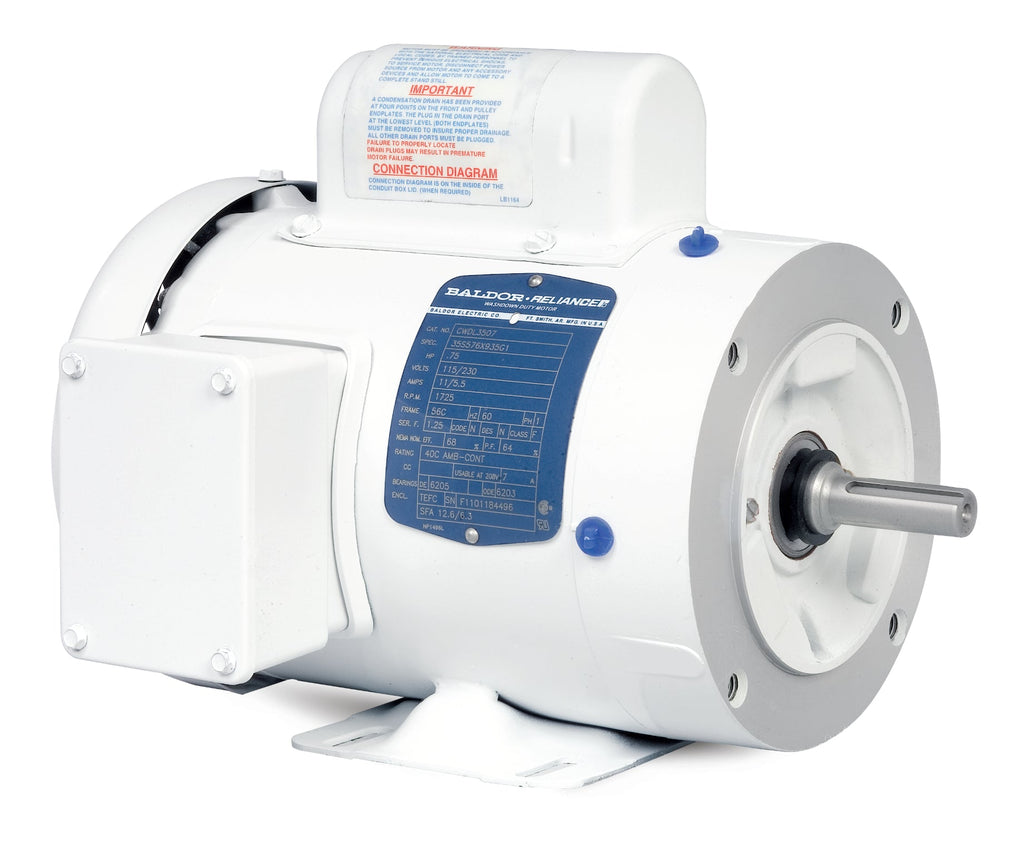

The Baldor CWDL3504 for Baldor pump systems.
Part Specifications
| Part Number | CWDL3504 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568108352
- Supplier Part Number
- CWDL3504
- Category
- AC Motors
- Subcategory
- White Washdown Motors
- Product Family
- Wash Down
- Agency Approvals
- CURUS
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 35.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Blower
- None
- Catalog Number
- CWDL3504
- Current @ Voltage
- 3.450 A @ 208.0 V, 3.500 A @ 230.0 V, 7.000 A @ 115.0 V
- Design Code
- N
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 66.0 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- 56C
- Frame Material
- Steel
- Frequency
- 60.00 Hz
- Front Face Code
- Standard
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 3.5 a
- Insulation Class
- F
- Inverter Code
- Not Inverter
- KVA Code
- L
- Lifting Lugs
- No Lifting Lugs
- Locked Bearing Indicator
- Locked Bearing
- Motor Lead Exit
- Ko Box
- Motor Lead Quantity/Wire Size
- 6 @ 18 AWG
- Motor Lead Termination
- Flying Leads
- Motor Letter Type
- Cap Start, Induction Run
- Motor Standards
- NEMA
- Motor Type
- 3520L
- Mounting Arrangement
- F1
- Number of Poles
- 4
- Output
- 0.500 hp
- Output @ Frequency
- .500 HP @ 60 HZ
- Overall Length
- 12.23 IN
- Phase
- 1
- Power Factor
- 70
- Pulley End Bearing Type
- Sealed Bearing
- Pulley Face Code
- C-Face
- Pulley Shaft Indicator
- Standard
- Rodent Screen
- None
- Service Factor
- 1.25
- Shaft Diameter
- 0.625 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- Shaft Slinger
- Speed
- 1740 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 1,800 rpm
- Synchronous Speed @ Frequency
- 1800 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 115 V, 230 V
- Voltage @ Frequency
- 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
- Winding Thermal 1
- None
- Winding Thermal 2
- None
