Baldor CUHM3542 - .75/.56KW IP44 IC411HP, 1765RPM, 3 Phase, 60HZ Three Phase IP44 Rating

Save $292.40
BaldorSKU: CUHM3542

Price:
Sale price$438.60 Regular price$731.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

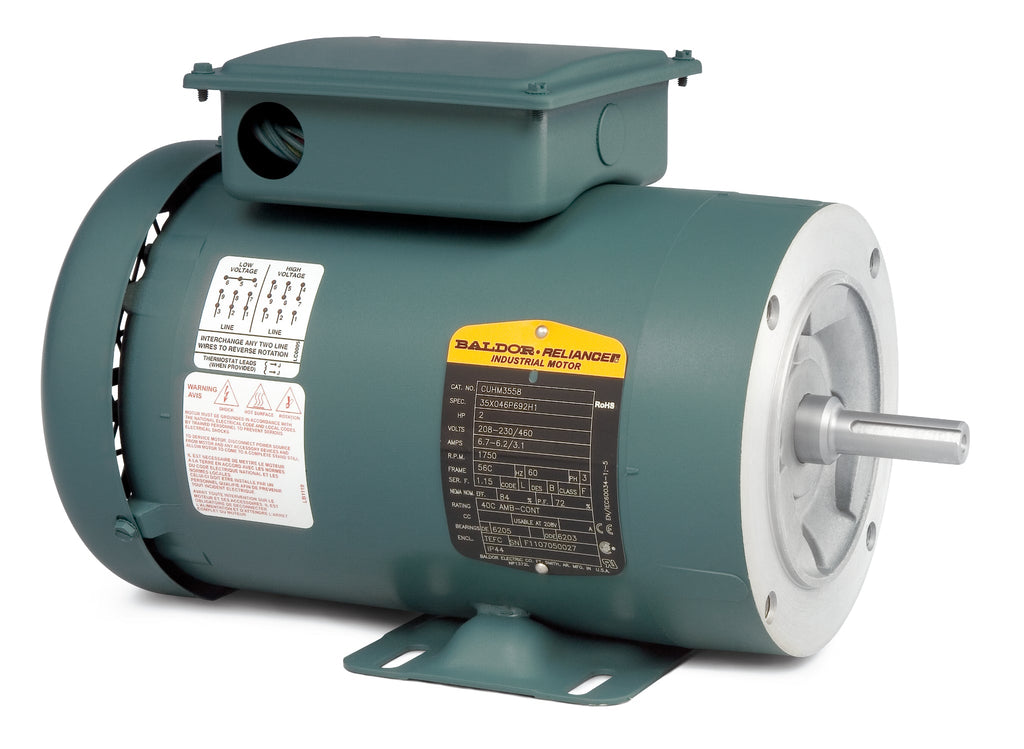

Baldor CUHM3542 General Unit Handling Motor

The Baldor CUHM3542 is a high-performance General Unit Handling Motor designed for reliable operation in various industrial applications. With a power rating of .75/.56KW and a robust IP44 rating, this motor is built to withstand challenging environments while delivering efficient performance.

Key Features:

  • Power: .75/.56KW
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • IP Rating: IP44
  • Type: IC411HP

This motor is ideal for applications requiring dependable power and durability. As a trusted vendor, Baldor ensures that each unit meets high standards of quality and performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CUHM3542 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568502433
Supplier Part Number CUHM3542
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals UKCA, WEEE, CURUS, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 31.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CUHM3542
Current @ Voltage 2.420 A @ 208.0 V, 2.420 A @ 230.0 V, 1.210 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.2 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3514M
Mounting Arrangement F3
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.23 IN
Phase 3
Power Factor 74
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
