Baldor CTM2276T - 7.5 HP, 1160RPM, 3 Phase, 60HZ, 254T, 0756M, Teao, F 60HZ Three Phase 7.5 HP 0756 M Cable

Save $1,334.00
BaldorSKU: CTM2276T

Price:
Sale price$2,001.00 Regular price$3,335.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

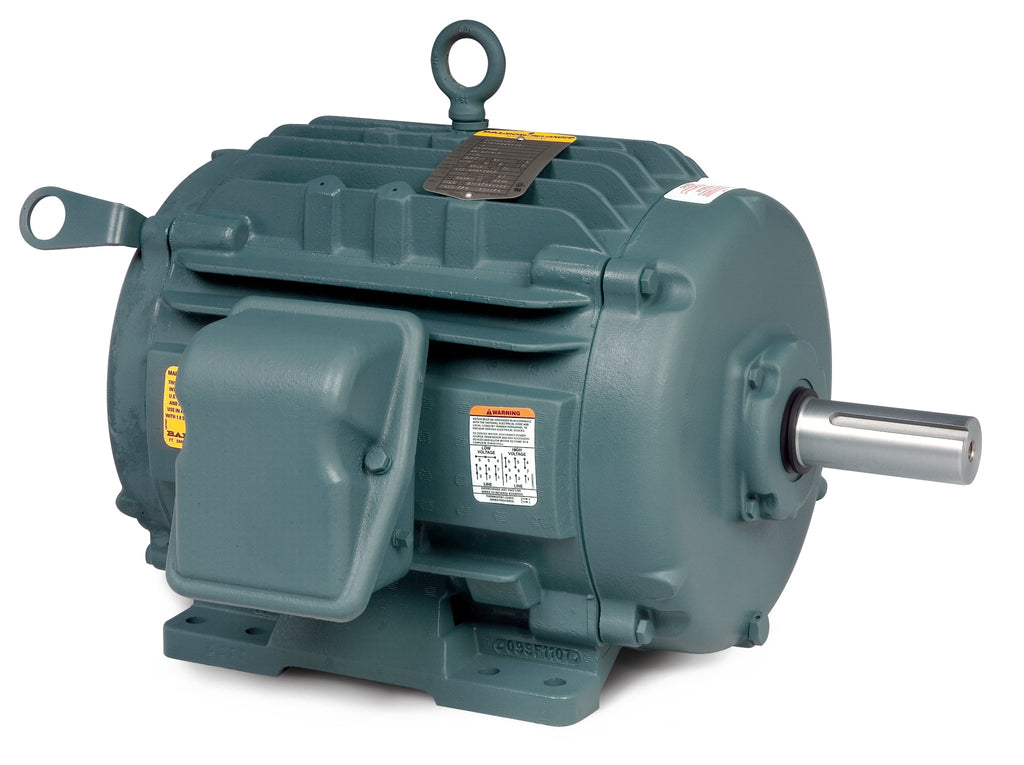

Baldor CTM2276T - 7.5 HP Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor CTM2276T, a high-performance chiller and cooling tower motor designed for efficiency and reliability. This robust motor features:

  • Power: 7.5 HP
  • Speed: 1160 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 254T
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: CTM2276T

This Baldor-Reliance motor is ideal for various applications, ensuring optimal performance in chiller and cooling tower systems. With its durable construction and efficient design, it is the perfect choice for those seeking a reliable motor for their cooling needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CTM2276T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568408186
Supplier Part Number CTM2276T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals CSA, CURUS, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 179.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CTM2276T
Current @ Voltage 21.800 A @ 230.0 V, 24.000 A @ 208.0 V, 10.900 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 10.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0756M
Mounting Arrangement F1
Number of Poles 6
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 22.16 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
