Baldor CTM1763T - 25/6.3 HP, 1760/870RPM, 3 Phase, 60HZ, 284T, 1040M 60HZ Three Phase 6.3 HP 1040 M Cable

Save $4,056.00
BaldorSKU: CTM1763T

Price:
Sale price$6,084.00 Regular price$10,140.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

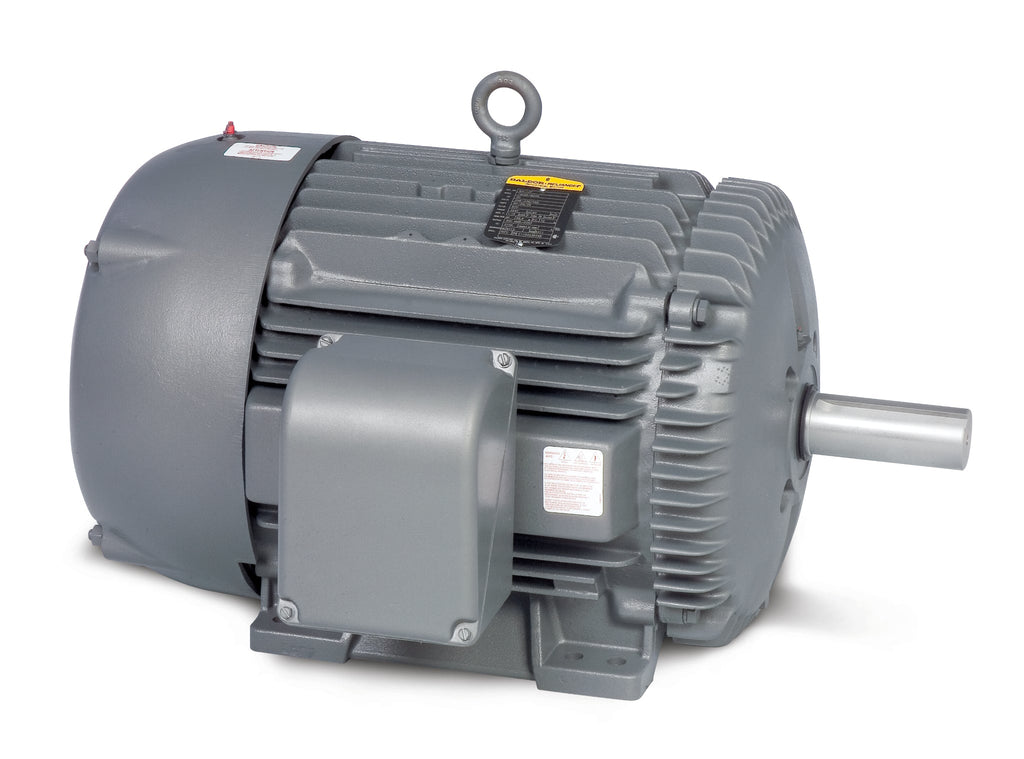

Baldor CTM1763T Chiller/Cooling Tower Motor

The Baldor CTM1763T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a power rating of 25/6.3 HP and dual speed options of 1760/870 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 25/6.3 HP
  • Speed: 1760/870 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 284T
  • Insulation Class: 1040M

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it a reliable choice for your cooling needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CTM1763T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568457351
Supplier Part Number CTM1763T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals CSA, CURUS, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 342.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CTM1763T
Current @ Voltage 32.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 284T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 6 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1040M
Mounting Arrangement F1
Number of Poles 4, 8
Output 6.300 hp, 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ, 6.300 HP @ 60 HZ
Overall Length 27.93 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm, 870 rpm
Speed Code 2S-1W-VT
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
