Baldor CTM1761T - 15/3.75 HP, 1760/885RPM, 3 Phase, 60HZ, 254T, 0940 60HZ Three Phase 3.75 HP

Save $2,885.60
BaldorSKU: CTM1761T

Price:
Sale price$4,328.40 Regular price$7,214.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

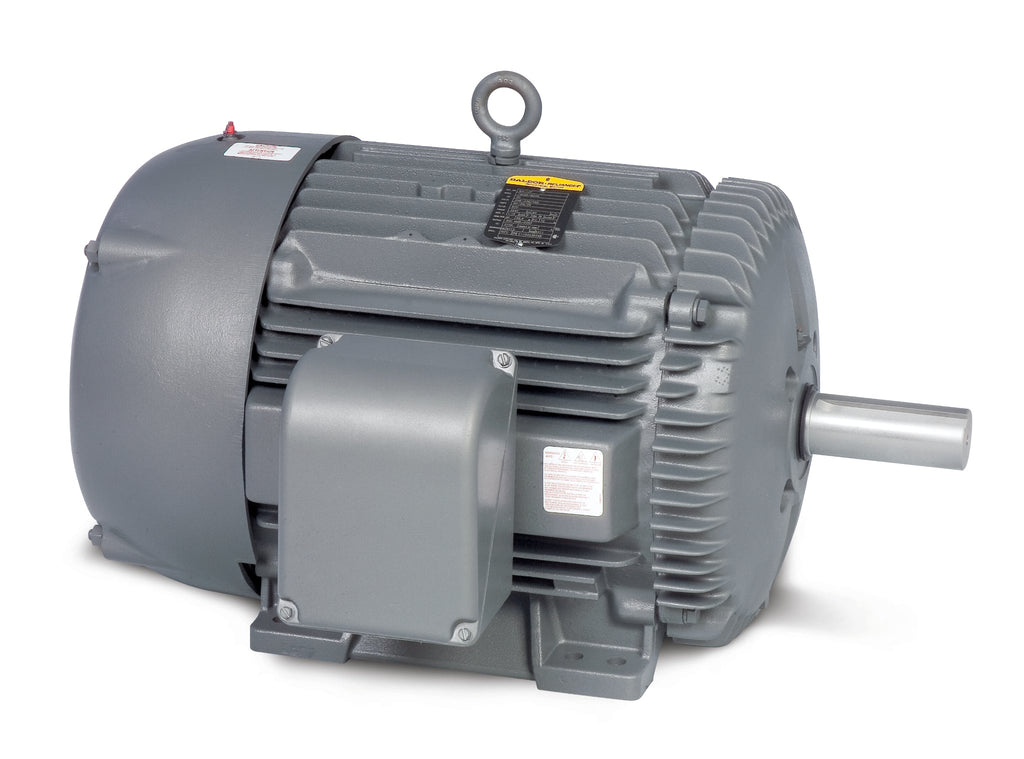

Baldor CTM1761T Chiller/Cooling Tower Motor

The Baldor CTM1761T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a power rating of 15/3.75 HP and dual RPM options of 1760/885, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 15/3.75 HP
  • Speed: 1760/885 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 254T
  • Product Code: CTM1761T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it a preferred choice for cooling applications. At Pump-Stop, we are your go-to source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CTM1761T to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568457320
Supplier Part Number CTM1761T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals UR, CURUS, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 290.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CTM1761T
Current @ Voltage 18.100 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.8 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0940M
Mounting Arrangement F1
Number of Poles 4, 8
Output 3.750 hp, 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ, 3.750 HP @ 60 HZ
Overall Length 24.78 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1760 rpm, 885 rpm
Speed Code 2S-1W-VT
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
