Baldor CSSWDM3534 - 0.33 HP, 1780RPM, 3 Phase, 60HZ, 56C, 3512M, Tenv, F 60HZ Three Phase 0.33 HP 3512 M Cable Stainless Steel 56°C

Save $730.40
BaldorSKU: CSSWDM3534

Price:
Sale price$1,095.60 Regular price$1,826.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

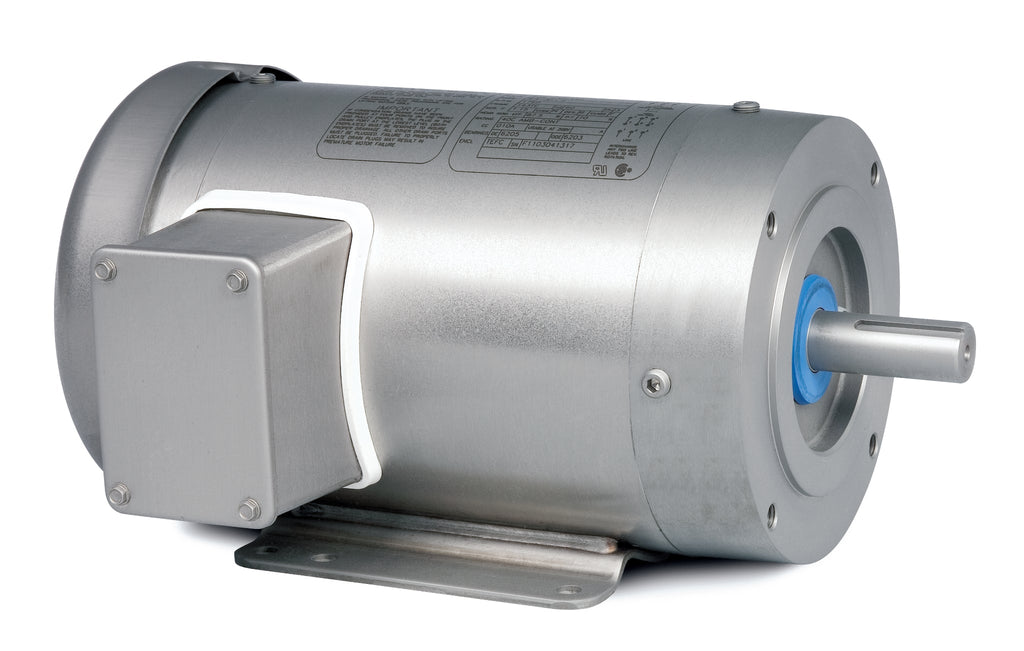

Baldor-Reliance Stainless Steel Motor - Model CSSWDM3534

Upgrade your pumping system with the Baldor CSSWDM3534, a high-performance stainless steel motor designed for durability and efficiency. This 0.33 HP motor operates at 1780 RPM and is engineered for three-phase applications at 60Hz, making it an ideal choice for various industrial and commercial uses.

Key Features:

  • Power: 0.33 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Temperature Rating: 56°C
  • Frame: 3512M
  • Type: Totally Enclosed Non-Ventilated (TENV)

This motor is built to withstand harsh environments, thanks to its stainless steel construction, ensuring longevity and reliability in your operations. Whether you are replacing an old motor or upgrading your system, the Baldor CSSWDM3534 is the perfect solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568727454
Supplier Part Number CSSWDM3534
Category AC Motors
Subcategory Stainless Steel Motors
Product Family Wash Down All Stainless Steel
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 33.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CSSWDM3534
Current @ Voltage .850 A @ 460.0 V, 1.500 A @ 208.0 V, 1.700 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.9 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code S
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.09 IN
Phase 3
Power Factor 49
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1780 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
