Baldor CSPM3611T - 3 HP, 1765RPM, 3 Phase, 60HZ, 182TC, 3642M, TEFC, F1 60HZ Three Phase 3 HP 3642 M Cable

Save $609.20
BaldorSKU: CSPM3611T

Price:
Sale price$913.80 Regular price$1,523.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

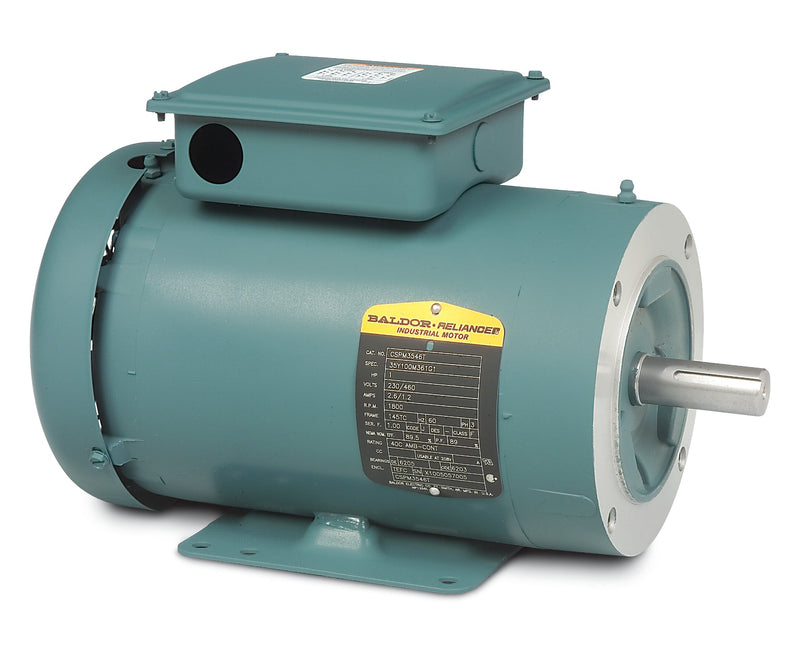

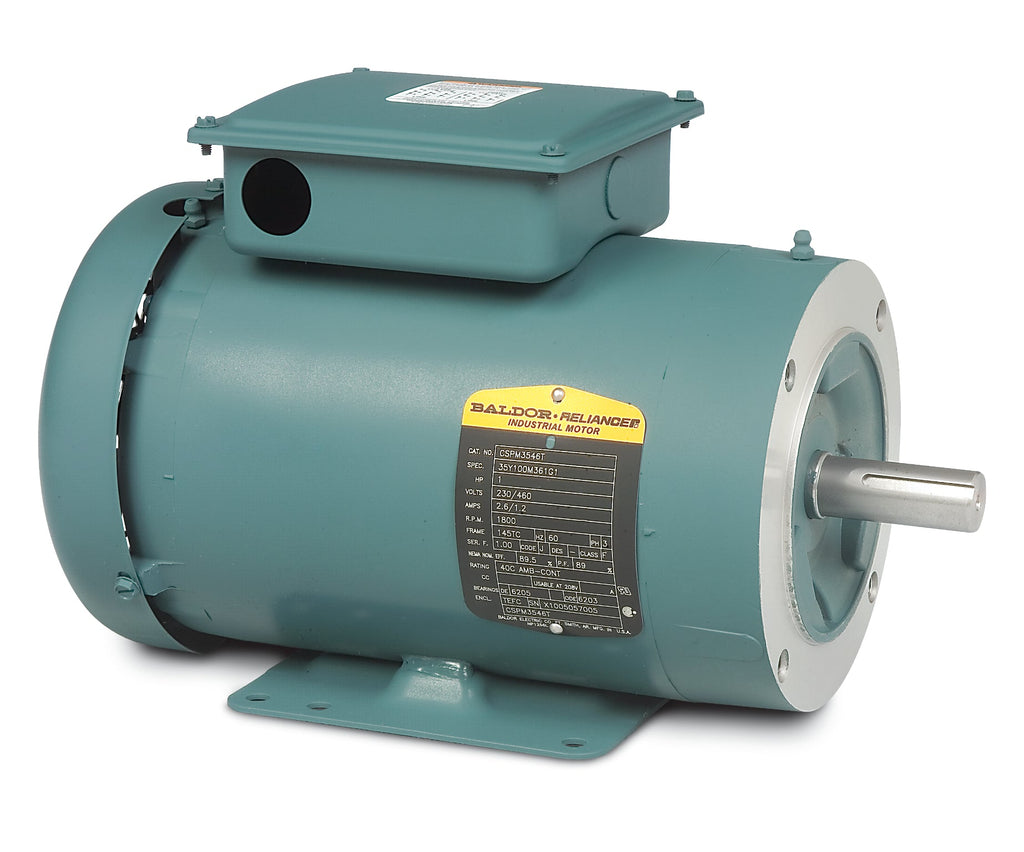

Baldor-Reliance Synchronous Permanent Magnet Motor - Model CSPM3611T

Upgrade your pumping system with the Baldor CSPM3611T, a high-performance 3 HP Synchronous Permanent Magnet Motor designed for efficiency and reliability. Operating at 1765 RPM and compatible with 3-phase power at 60Hz, this motor is ideal for various industrial applications.

Specifications:

  • Power: 3 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 182TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CSPM3611T

This motor features a robust design with a 3642M cable, ensuring durability and long-lasting performance in demanding environments. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right components for your needs. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CSPM3611T. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568504833
Supplier Part Number CSPM3611T
Category AC Motors
Subcategory Synchronous Permanent Magnet Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 70.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CSPM3611T
Current @ Voltage 4.000 A @ 460.0 V, 8.000 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3544M
Mounting Arrangement F3
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.56 IN
Phase 3
Power Factor 89
Product Type SYNCHRONOUS PERMANENT MAGNET
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
