Baldor CNM3539 - .5 HP, 1175RPM, 3 Phase, 60HZ, 56C, 3522M, Tenv, F1 60HZ Three Phase Three Phase 5 HP 3522 M Cable 56°C

Save $430.80
BaldorSKU: CNM3539

Price:
Sale price$646.20 Regular price$1,077.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

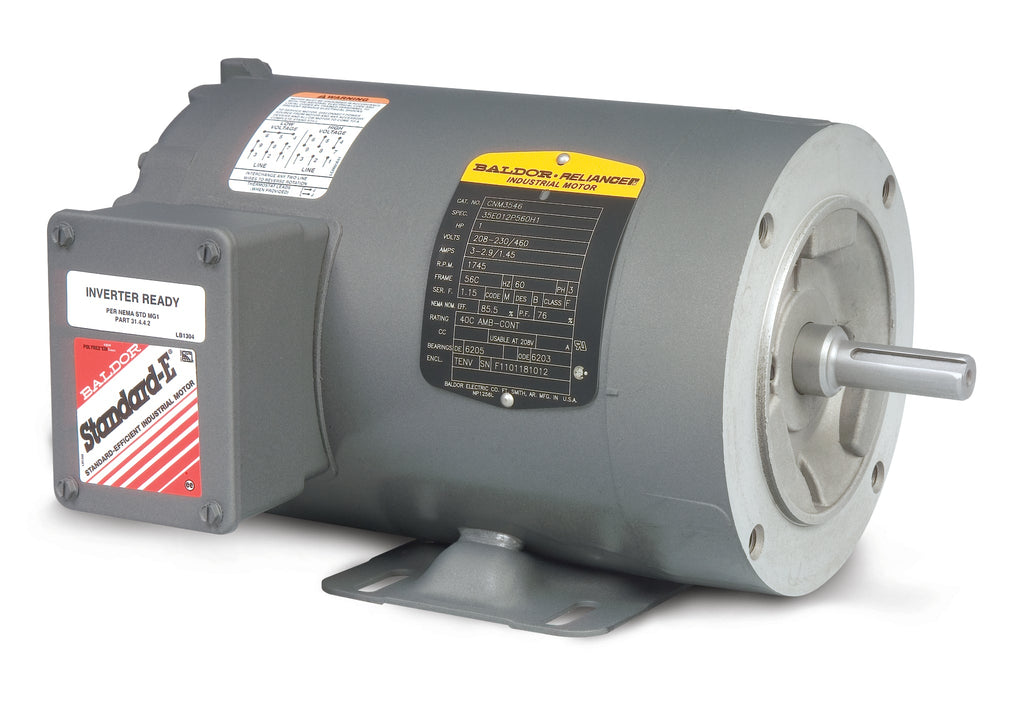

Baldor CNM3539 - 0.5 HP Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor CNM3539, a high-quality three-phase enclosed motor designed for various industrial applications. With a power output of 0.5 HP and a speed of 1175 RPM, this motor operates efficiently at 60Hz. It features a 56C frame and is built with a TENV (Totally Enclosed Non-Ventilated) design, ensuring durability and protection against environmental factors.

Key Specifications:

  • Power: 0.5 HP
  • Speed: 1175 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56C
  • Type: TENV
  • Product Code: CNM3539

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CNM3539 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568502938
Supplier Part Number CNM3539
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 40.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number CNM3539
Current @ Voltage 1.000 A @ 460.0 V, 2.000 A @ 208.0 V, 2.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3522M
Mounting Arrangement F1
Number of Poles 6
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 12.06 IN
Phase 3
Power Factor 57
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1175 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
